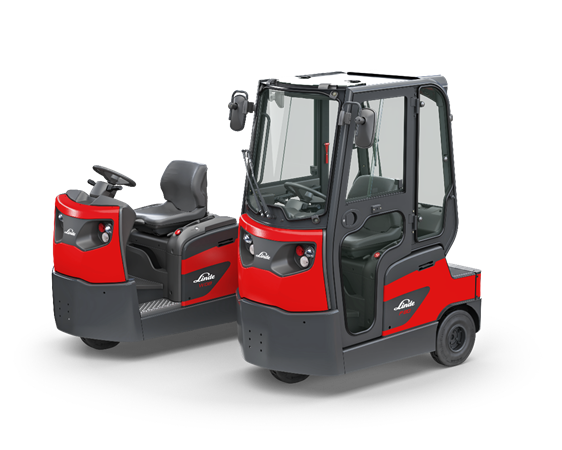

P60 - P80 Series 1191 Electric Tow Tractor

Convenient power packs

LindeMH

High throughputs, even in the smallest of spaces

The P60 - P80 and W08 rider-seated tow tractors can tow trailers with heavy loads and provide quick, safe and flexible processes. This allows the decoupled and spring-mounted suspension of all 3 wheels and ensures quiet and safe travel.

At the same time, the trucks have a high towing force and small turning circle. Therefore, the throughput remains high even if there is only a small amount of space available in the warehouse. The driver benefits from a workstation with lots of legroom, an adjustable driver’s seat and steering wheel, as well as intuitively arranged control elements. The W08 tow tractor has a towing capacity of 0.8 tonnes, and the P60 - P80 tow tractors have a towing capacity of 6.0 - 8.0 tonnes. All trucks have a top speed of 20 km/h (without load).

Characteristics

  • Four separate braking systems, and the electric brake automatically activates when the driver releases the accelerator.
  • Self-adjusting hydraulic drum brakes are positioned on all three wheels, which respond to the brake pedal.
  • Parking brake is automatically activated when the truck stops.
  • There is an automatic assistant for driving uphill which ensures the trucks do not roll backwards.
  • Good all-round visibility.
  • Solid steel chassis and sturdy construction ensures the driver is completely protected.

Our main goal is to allow the driver to remain focused and not become fatigued while working.

  • Ergonomic workstation with lots of legroom.
  • Driver can adjust the seat and steering wheel to their height.
  • Control elements are easy to reach and are intuitively arranged.
  • On both sides, there is a large entry point with rounded angles and non-slip steps making it easier to access the truck.
  • Driver can safely store all their work tools in the storage compartments, and access them easily.

The electric tow tractor is designed using a modular concept as a basis, which means you can customise it precisely to your application.

  • Cabs with sun protection, sunroofs or side windows, roller doors or fully enclosed, heated cabs are available.
  • 4.5 kW AC motor provides a high towing force.
  • The truck can be precisely controlled, and in narrow aisles the small turning circle also makes every manoeuvre easier.
  • 4 separate braking systems help to improve the handling, for eg, driving uphill is made quicker and easier.
  • Long intervals between service.
  • Transmission oil only needs to be changed every 10,000 operating hours.
  • CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
  • Service components and battery can be accessed easily.
  • Multi-functional display shows the truck and battery status.
