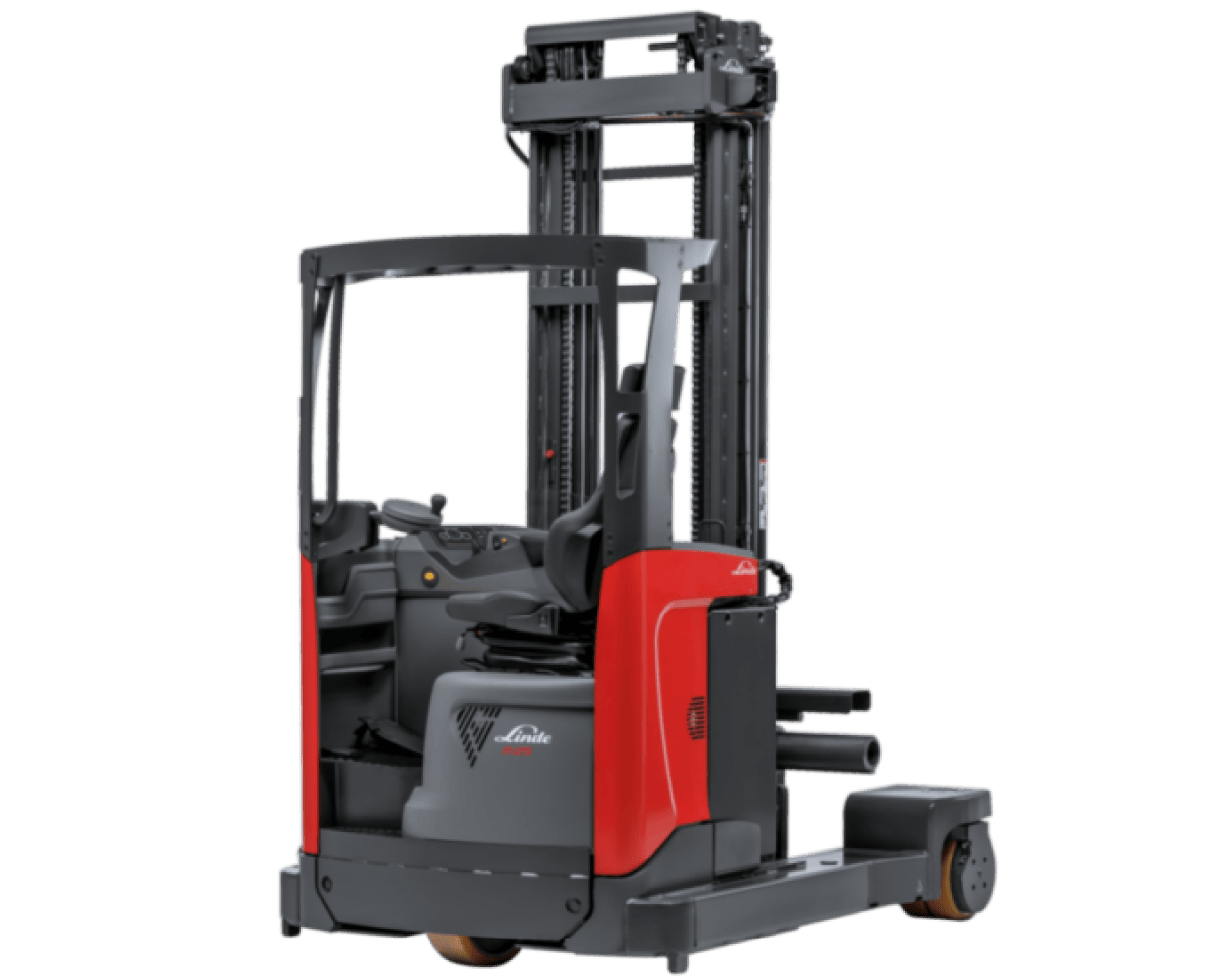

R20 - R25 F Series 8923 Electric Reach Truck

Nimble long goods transporters

Four-way reach trucks for narrow aisles

R20 – R25 F four-way reach trucks are specifically designed for transporting particularly long items in narrow aisles. They are not only able to move forwards and backwards, but can also move sideways in both directions.

Their adjustable prongs, which can be set to a width of up to two metres allow extra-long loads to be transported and stacked. With lift heights of up to 9.5 metres, they are also suitable for use in high rack warehouses. R20 – R25 F series trucks can even easily handle high loads of up to 2.5 tonnes. This makes them ideal for long and heavy loads, such as steel girders and wooden beams for the building and timber industry, as well as for use on production equipment and in the logistics sector.

Characteristics

  • Automatic parking brake increases safety when stopping on ramps or gradients.
  • Combination of the electromagnetic brake on the drive wheel and the hydraulic brake on the right tandem load wheel ensures precise braking in all driving situations.
  • Protective pane made of high-strength, transparent polycarbonate, reliably protects the operator from falling loads while also providing a panoramic view.
  • End position damping gently reduces the end speed during mast forward reach and lifting movements as soon as the maximum lifting height or maximum forward reach is attained.
  • Truck automatically switches to creep speed from a certain lifting height, so that loads can be safely positioned and picked up.
  • Linde Curve Assist regulates the cornering speed of the truck depending on the steering angle, and reduces the risk of truck tipping when cornering.

Linde R20 – R25 F trucks are designed with a specific focus on the operator's ergonomic requirements to ensure they can work fatigue-free.

  • Individual adjustment options for the operator's seat, operating console and the base plate height allow operators to further increase their level of comfort.
  • Intuitive and ergonomically arranged control elements ensure effective operation.
  • Low cabin entry point with handhold facilitates easy entry and exit.

The R20 – R25 F four-way reach trucks combine the features of straddle trucks, counterbalanced forklift trucks, reach trucks and side loaders.

  • Intuitive 360° control provides optimum manoeuvrability.
  • Optional manually or hydraulically adjustable fork distance enables considerable flexibility when handling wide and long loads as well as with standard pallets.
  • High lift and travel speeds combined with safety features such as end position damping and a display showing load and lifting height mean faster precision handling in the tightest of spaces.
  • Truck structure has a low centre of gravity ensuring high residual load capacities.
  • Energy-saving AC motor enables maximum handling performance.
  • Battery range, graded according to the necessary output, allows the most efficient solution to be selected which means that the truck can be precisely aligned to specific operating requirements on-site.
  • Trucks are equipped with easily accessible components ensuring extremely fast and efficient servicing.
  • CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician so they can perform a quick diagnosis and adjust various parameters.
  • Lift and AC drive motors are maintenance free.
  • Servicing is only required every 1,000 operating hours, this ensures high truck availability and makes these trucks extremely cost-effective to run.

Technical Data
