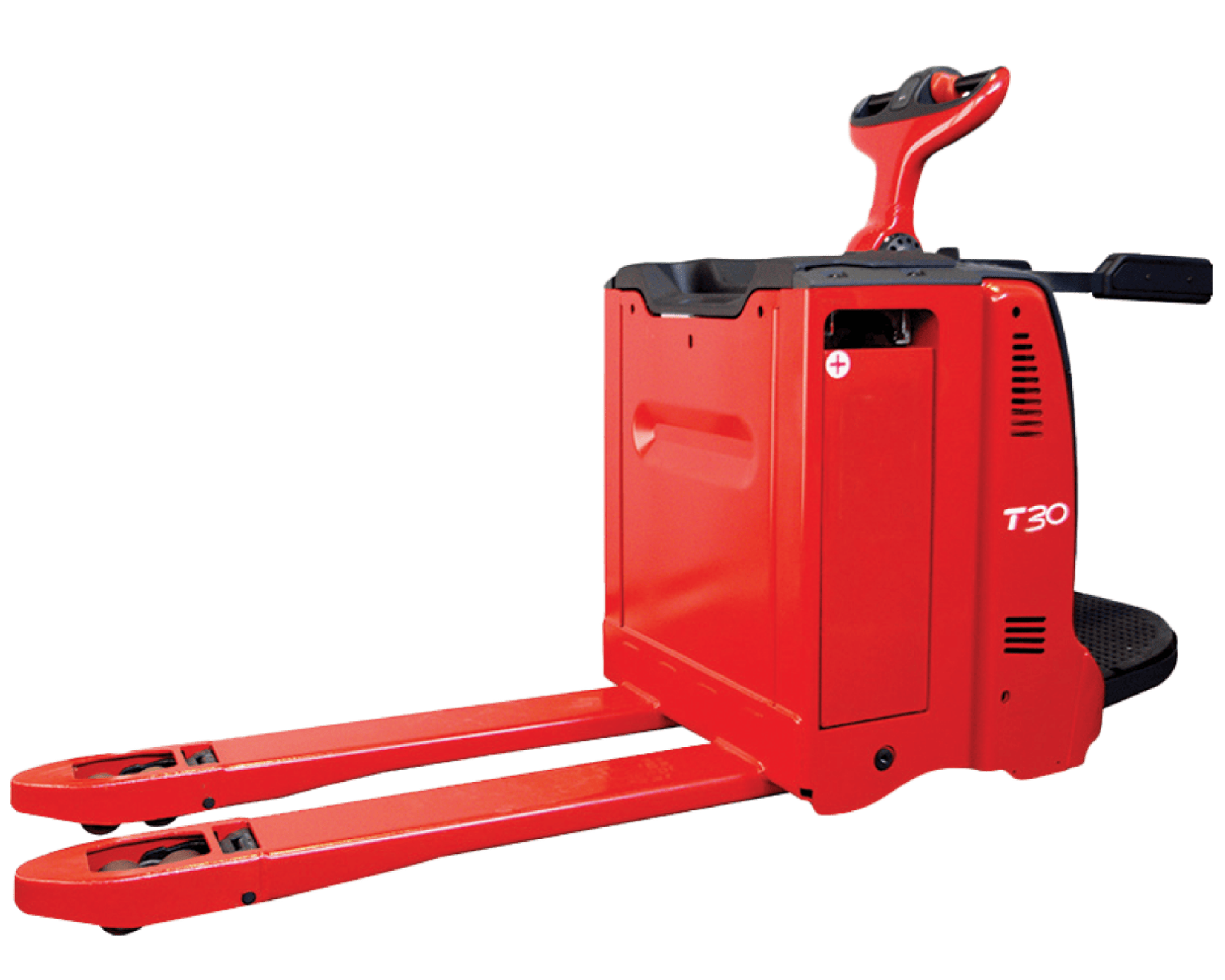

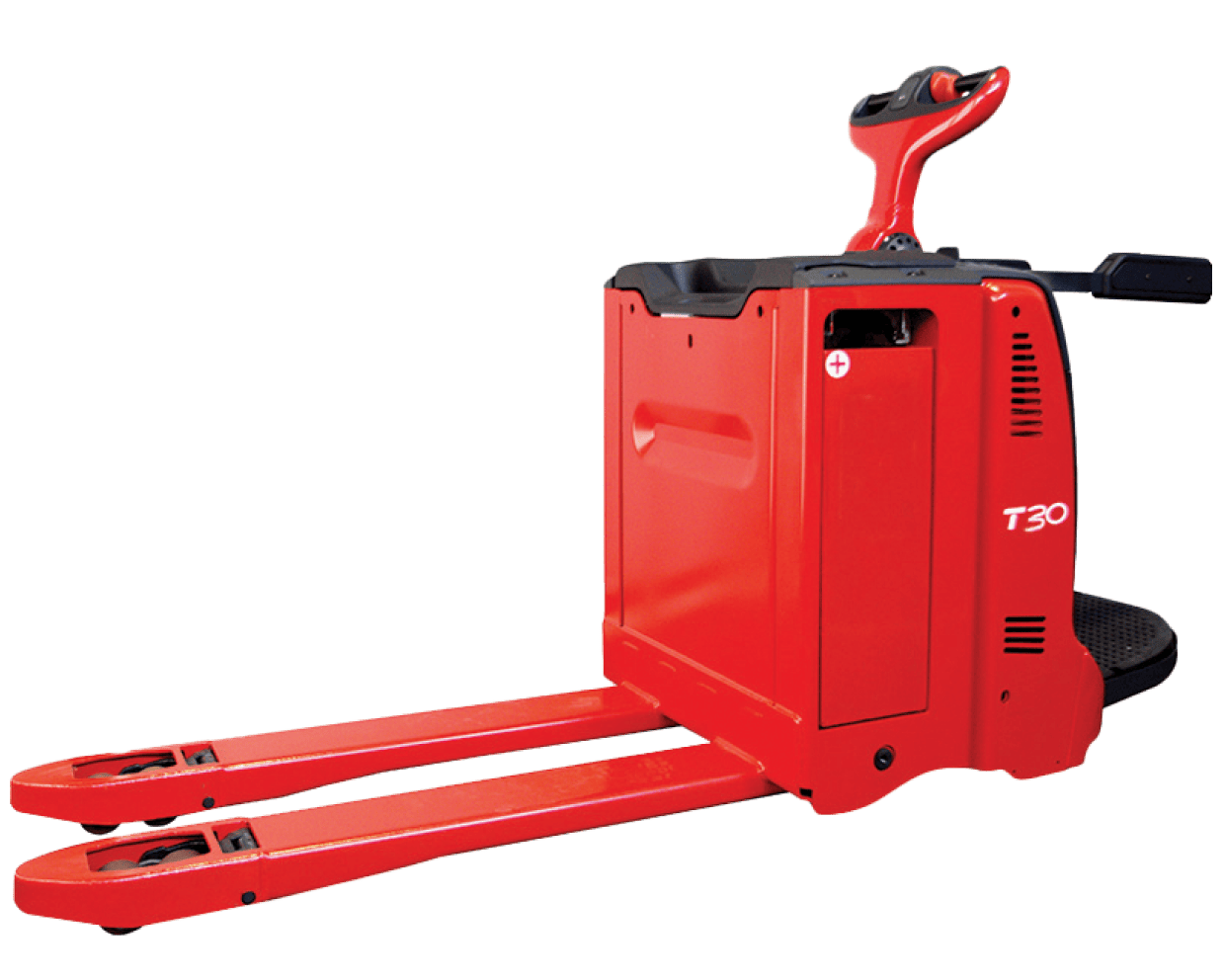

T30 (AP) Series 1158 Electric Pallet Truck

Precision and safety in a narrow warehouse environment

A narrow chassis that makes load handling much easier

The T30 pallet trucks from Linde Material Handling are designed for use in confined and highly frequented storage areas. Thanks to a narrow chassis, load handling is much easier.

The intuitively arranged control elements on the ergonomically designed tiller head means the operator can easily control the pallet truck with either the right or left hand. In tight curves, the operator can manoeuvre with precision in creep speed when the tiller is in a vertical position — this means that both goods and the truck, as well as other employees, are well protected. If the operator releases the butterfly steering or changes the direction of travel, the truck brakes automatically.


The highly functional design of the Linde T30 provides optimum protection for the operator.

  • Low steel chassis surround ensures the wheels always rotate safely within the truck contours
  • The smooth, rounded profiles of the chassis and tiller head enhances operator safety and eliminates snagging in confined areas
  • ​​
  • Safety reversing switch on tiller head prevents operator being squeezed against the wall
  • Hand and foot protection complying to safety codes
  • Emergency stop switch
  • The operator controls all functions via the ergonomic, two-handed tiller head
  • A button for the creep speed function facilitates precise handling in tight spaces; to do this, the operator holds the tiller in an upright position
  • User-friendly multifunction display ensures the operator is always informed about the current status of the truck
  • The operator can store work equipment such as gloves or packaging film in a spacious storage compartment
  • Hand grips made of material that’s pleasant to the touch
  • Sturdy metal hand guard
  • Controls convenient to operate when wearing gloves
  • Ergonomically optimised placing of work accessories
  • Powerful 1.5kW AC motor accelerates the T30 to a speed of up to 6 kilometers per hour, making it suitable for transporting heavy loads over short to medium distances or for loading and unloading trucks
  • Creep speed function enables precise manoeuvring and offers optimum stability when handling loads, this is also supported by the narrow design of the robust chassis
  • Arrow-shaped fork tips make it easier to pick up foil wrapped pallets
  • Maintenance intervals are minimal which in turn reduce operating costs
  • CAN bus allows for quick diagnosis for servicing
  • 1000 operating hours between services
  • Integrated diagnostic system
  • Easy service access
  • Performance parameters can easily be configured to match the requirements of individual applications
  • Robust construction
  • Maintenance-free AC motor
  • Alternative fork lengths and widths

  • Vukollan-tyred drive wheel

  • Grooved rubber-tyre drive wheel

  • High-grip tyred drive wheel for wet and slippery surfaces

  • Cold store version for temperatures down to -30°C

Technical Data
