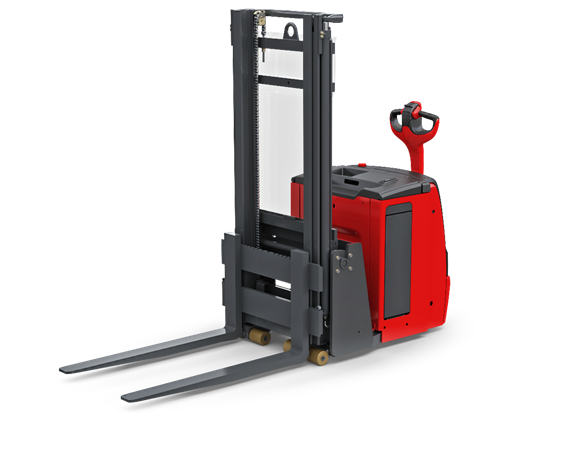

L06 - L16 AC Series 1171 Electric Pallet Stacker

Versatile powerhouse

LindeMH

Manoeuvrable and strong for dynamic load handling

The L06–L16 AC series of counterbalanced pallet trucks are an efficient handling solution for stacking and transporting small to medium loads. They are used where there is not enough space for a lift truck with support arms or the transport distance is too short for an electric forklift truck.

The precise and dynamic power steering makes the L06–L16 AC series extremely manoeuvrable and versatile. Fitted with ISO standard forks, the trucks can handle all types of pallets. The long, low-mounted tiller protects the operator by providing sufficient safety clearance from the chassis. Safety is also ensured by the automatically adjusted operating behaviour around bends, and by the clear view of the load.

*Lithium-ion battery is available with the L10 – L16 AC range of models.

Characteristics

  • Long, low-mounted tiller ensures sufficient safety distance between the operator and the chassis.
  • All-round design of the tiller head helps protect the operator's hands.
  • Deep chassis of the series prevents the operator's feet from being trapped under the forklift truck.
  • While turning a corner, the truck automatically adjusts its speed and prevents possible overturning.
  • Automatic brake activates as soon as the operator releases the steering console on the tiller.
  • Easy-to-reach emergency stop switch interrupts all truck circuits and immediately releases the electromechanical brake.
  • All controls are ergonomically integrated into the tiller head, including those used to control the movement of the lift mast.
  • Double-handle steering control can be operated with both hands to enable precise and comfortable handling of the truck.
  • All buttons on the control console are freely accessible and can be operated by light pressure with the fingertip, making all functions effortlessly operated, even when wearing thick gloves.
  • The long tiller makes the trucks easy to operate and manoeuvre in small spaces.
  • Generous storage compartment for work equipment such as scanners, gloves and pens. A DIN A4 clipboard can also be attached to a special holding clamp.

With its dynamic and precise power steering, the L06–L16 AC series is particularly characterised by its manoeuvrability, which makes load handling in cramped conditions much easier.

  • Speed of the truck is controlled by the operator via the tilt angle of the tiller.
  • The ISO standard forks can accommodate all types of pallets and mesh boxes.
  • Compact and powerful 2.3 kW AC drive enables speeds up to 6 km/h.
  • A starting aid avoids backward rolling when starting on a slope.
  • The wide range of standard, duplex and triplex masts ensures high residual capacities in the range of 0.6-2.0 tonnes.
  • Digital multi-function display informs the user of the battery charge status, operating hours, service status and any possible errors.
  • CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
  • Main technical components of the truck are freely accessible.
  • Maintenance-free technology of the AC drive enables maintenance intervals of up to 1,000 operating hours.
