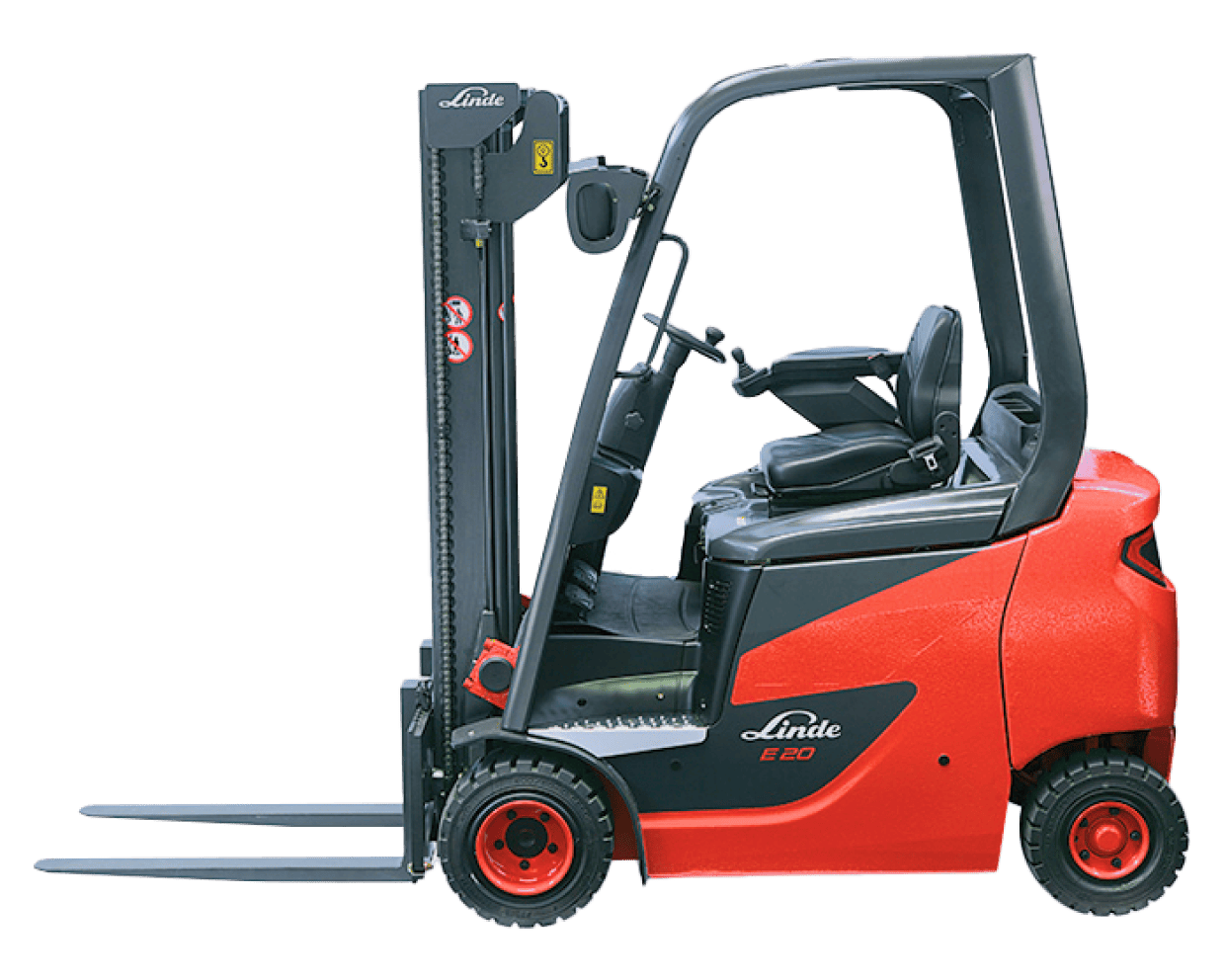

E16-E20 Series 1275 (4 WHEEL) Electric Forklift

The entire truck is designed with a continuously high focus on safety, features include:

• Linde Traction Control, an exclusive standard feature with intelligent automatic power distribution to the front wheels that will avoid spinning wheels either on slopes or on slippery ground material
• Linde Curve Assist, this regulates the cornering speed of the truck depending on the steering angle, and reduces the risk of truck tipping when cornering
• Maintenance-free wet-disc brake
• Linde Clear View Mast, a unique slim mast design that provides optimised visibility
• Regenerative braking which provides automatic speed control on a gradient with minimal use of disc brakes
• LED lights at the back of the forklift to provide superb illumination

A consistently high level of efficiency for extended working periods is only possible with ergonomic design:

• Cab is supported on hydraulic damping mounts isolated from vibration, noise and shock, allowing for a high level of working comfort.
• Two-way adjustable, wide and cushioned armrest with integrated integrated joysticks allow for effortless, smooth and precise load handling.
• Compact steering wheel enables comfortable, ergonomically optimised operations, combined with the hydraulic steering, allows for ease of steering with only 4-5 turns to full lock.
• Adjustable steering column.
• Well positioned parking brake located at the right hand side of the steering column.
• Various storage compartments.
• Modern LCD display showing all relevant truck data within the driver’s field of vision including information on operating hours, speed and battery charging level.

Linde electric trucks deliver powerful electric motors with intelligent control. Together, these factors form an impressive and compact powerpack that delivers the benchmark in optimal productivity:

• Powerful twin AC motor traction system with maintenance free AC motors contains no carbon brushes, and has an enclosed axle which offers excellent heat dissipation with thanks to cooling fins on the axle casing.
• Precise control is provided by the perfect interplay between the twin-motor front drive and Linde Load Control. This allows all lift mast functions to be operated effortlessly with the slightest finger movement, and operators can lift and tilt at the same time
• Pendulum axle provides enhanced stability, increased manoeuvrability and safe operation in narrow aisles.
• Dual pedal control enables fast direction changes as well as precise, relaxed and intuitive operation.
• Moving front axle provides enhanced stability for distance travel when you engage the backward tilt i.e, the load wheels extend further out, providing you with a longer wheelbase and giving you more stability all round.
• The power module is mounted on the traction axle, allowing for minimal power loss to the drive motors, providing effective optimisation of the motor.
• Exceptional residual capacity with full load capacity up to maximum lift height.

European manufactured cutting edge drive and lift motors plus contact-free hydraulic mini levers underline the premium standard of this electric truck:

• Fully sealed aluminium component housings provide superb protection from dust and dirt ingress resulting in less need for cleaning.
• Four different battery change solutions.
• Preventative maintenance service only needs to be carried out every1000 operating hours.
• Hydraulic oil only needs to be changed every 3000 hours.
• Standard 180 degree battery door for quick vertical and lateral battery changes.
• Maintenance free AC motors.
• Easy fault diagnosis is available through the Linde digital control system.

• Cabin heating

• Lever configuration

• Lighting

• Drive in racking

• Cold store protection

• Dual pedal configuration
