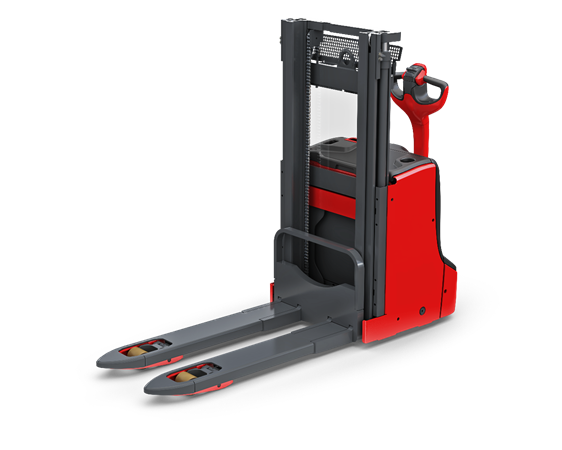

D06 - D08 Series 1160 Electric Pallet Stacker

Multifaceted duo


Compact and agile for double the handling performance

The pedestrian double stackers D06 and D08 are ideal for easy logistical use, where there are rapid transport and order picking processes. Despite a lift height of 2024mm, the trucks are very compact. This makes working in narrow warehouses easier. By using the innovative creep button, the truck can still manoeuvre precisely even when there is very little space available.

The innovative caster system provides more safety by improving traction and stability on uneven floors. The operator has a good view of the load and the path through the special mast construction, and the pallet stackers can simultaneously transport two palettes with a total capacity of 0.6 or 0.8 tonnes respectively.


  • Long, low-mounted tiller ensures sufficient safety distance between the operator and the chassis.
  • Low chassis skirt protects the operator's feet.
  • Creep speed button, Linde SafetySpeed and SafetyLift functions allow safe transport and order picking is possible even in confined areas.
  • These pedestrian double stackers are easy to operate with the tiller, and can be used while the operator is wearing gloves.
  • Creep speed button is perfect for use in confined spaces.
  • Truck moves at a speed of 1.5 km/h.
  • Generous compartments provide space for work tools and make work processes easier.

The special strength of the double stacker is in the handling.

  • Intuitive operating concept makes it possible to lift and lower the load with high levels of precision.
  • Lifting cylinders are installed on the side giving the operator a good view of the load and the racking.
  • Soft Landing function helps the goods be lowered gently to the floor.
  • When used as a double stacker, two pallets up to a weight of 0.8 tonnes can be transported and stored.
  • Patented caster wheel system provides improved traction and stability.
  • Important components can be reached quickly behind the motor cover.
  • CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
  • Digital multifunction display informs the user of the battery charge status, operating hours, service status and any possible errors.
  • Maintenance-free, moisture and dust resistant 1.2 kW AC motor ensures continually high availability.
  • Patented caster wheel system makes it no longer necessary to readjust the casters.

Technical Data


Optional Equipment
