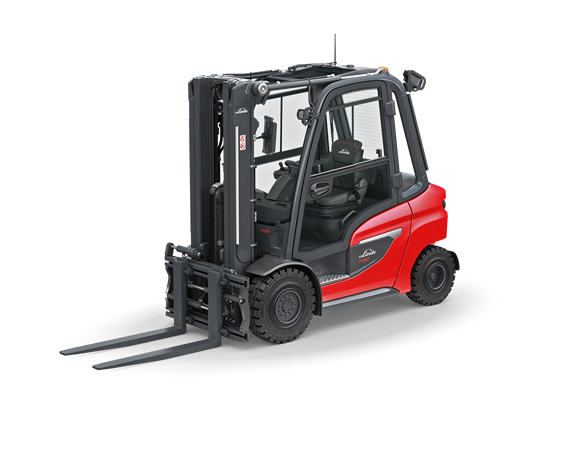

H20 - H35 Series 1202 Engine Forklift

Robust performer with all-round visibility

LindeMH

Networked and easy to service for maximum efficiency

The IC truck H20–H35 is powerful, easy to operate, robust, low-maintenance and versatile.

The forklift for loads between 2.0 - 3.5 tonnes is particularly well-suited for high loads in multi-shift operation and assignments in even the harshest outdoor conditions.

The Hydrostatic drive, dual pedal control, Linde Load Control and optimal visibility ensure precise interaction between man and machine.

Design details combined with intelligent assistance systems guarantee the highest possible levels of safety. Plus, the H20–H35 can be integrated into software systems such as fleet management, via wireless data transmission. This truck fulfils the latest EU 5 (2016/1627) exhaust emission regulations, and it even undercuts the required emissions massively.

Characteristics

  • Slim, asymmetrical mast profiles, narrow A-pillars, a spacious and well-lit operator’s area and the lowered front plate ensure outstanding visibility.
  • Good upward visibility with narrow cross struts or an optional armoured glass roof.
  • The truck’s low centre of gravity and a high-mounted steering axle ensure good stability when cornering.
  • Linde Curve Assist reduces the speed when cornering.
  • Linde Load Assist reduces the risk of tipping and loading accidents.
  • The hydrostatic drive automatically brakes the truck to a standstill when the accelerator pedal is released, meaning there's minimal to no roll back, even on slopes — it also applies the park brake automatically when the engine isn't running.
  • These trucks can also be fitted with:LED Stripes, Linde VertiLight, Linde TruckSpot, Linde BlueSpot™ light and warning solutions, the Linde Safety Pilot and Linde Safety Guard assistance systems.

The H20–H35 offers an ergonomic and intuitively organised operating concept.

  • The steering wheel, dual pedals and joysticks for the Linde Load Control, which is integrated into the armrest, can be operated with minimal movement required.
  • The operator is protected against impacts and vibrations as the drive and steering axles as well as the mast are decoupled from the frame and chassis with rubber bearings.
  • A large selection of ergonomic seats is available to provide active protection against postural injuries.
  • Features including air suspension, lumbar support, seat heating and seat ventilation provide additional comfort.
  • The 3.5-inch display gives the operator a quick overview of important information about the truck.

The interaction of hydrostatic drive, industrial engine, operating concept, ergonomic design and optimised all-round view ensures productive load handling.

  • Dual pedal control and the Linde Load control joysticks guarantee precise control of all driving and mast movements.
  • Interconnect frequently used functions via the programmable buttons in the armrest.
  • Construction of the mast profiles and the overhead tilt cylinders ensure torsional stability and high residual load capacities for large lifting heights.
  • The hydrostatic drive enables smooth and safe transitions when changing direction at any speed, coupled with a reduction in mechanical components (i.e no clutch, torque converter, differential or conventional service breaks) leads to proven durability and reliability even in the toughest of applications.

The robust construction of the H20–H35, as well as wear-free and maintenance-free components like the hydrostatic drive system or the lubrication-free tilt cylinders, ensure high operational availability.

  • The hydrostatic drive ensures a long lifetime of the internal components, as they are sealed and maintenance free, plus it stops tyres from spinning which results in less tyre wear.
  • The hydraulic oil intake filter and coolant pump do not need to be replaced.
  • The hydraulic oil only needs to be changed after 6000 operating hours.
  • The powerful and robust industrial engine boasts maintenance-free spur gears, so there's no need to replace the toothed belt as is the case with car engines.
  • The Linde Engine Protection System (LEPS) provides additional damage protection as do the Truck Health Monitoring sensors, especially in extreme outdoor temperatures.
  • The transverse installation of the engine means the service openings are extra-large, so components that require maintenance can be accessed and replaced easily.

Videos & images

Technical Data
