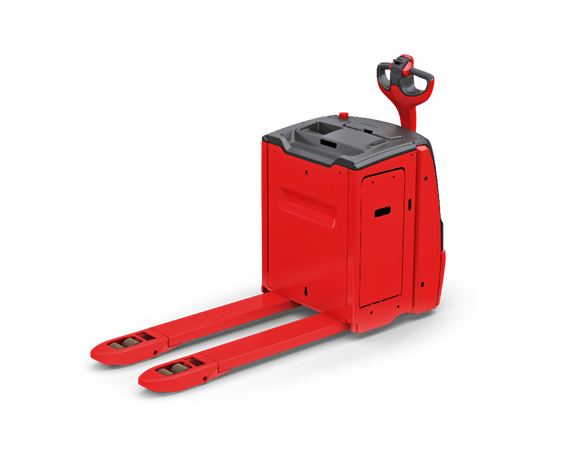

T25-T30 Series 1153 Electric Pallet Truck

Compact load transporter

LindeMH

Precision and safety in narrow warehouse environment

The T25 – T30 pallet trucks from Linde Material Handling are designed for use in confined and highly frequented storage areas. The narrow chassis and innovative rollers make load handling much easier.

The intuitively arranged control elements on the ergonomically designed tiller head means the operator can easily control the pallet truck with either their right or left hand. The long, low-mounted tiller keeps the truck at a safe distance.

On tight curves, the operator can manoeuvre with precision in creep speed when the tiller is in a vertical position meaning that both goods and the truck as well as other employees are well protected. If the operator releases the butterfly steering or changes the direction of travel, the truck brakes automatically.

Characteristics

  • The long tiller with a low mounting point gives the operator sufficient safety clearance from the truck, and the low chassis also protects the operator’s feet.
  • Speed automatically adjusts when the tiller is tilted and end stop resistance prevents abrupt braking.
  • To prevent loads from slipping an optional load backrest can also be added.
  • Optional Linde BlueSpot™is particularly suitable for highly frequented areas, warning other trucks or pedestrians of the truck’s presence with a blue light spot on the floor.
  • Operator controls all functions via the ergonomic, two-handed tiller head.
  • Button for the creep speed function facilitates precise handling in tight spaces.
  • User-friendly multifunction display ensures that the operator is always informed about the current status of the truck.
  • Spacious storage compartment to store work equipment such as gloves or packaging film.
  • Powerful 1.5kW AC motor allows the pallet truck to accelerate to a speed of up to 6 kilometres per hour, making it suitable for transporting heavy loads
  • over short to medium distances or for loading and unloading trucks.
  • Innovative rollers, narrow design of the robust chassis and the creep speed function enable precise manoeuvring and offer optimum stability when handling loads.
  • Arrow-shaped fork tips make it easier to pick up foil-wrapped pallets.

The maintenance-free AC drive and the robust, robot-welded construction increase service life and reduce service costs.

  • Good accessibility and clear arrangement of all internal components help the service technician carry out work quickly.
  • CAN bus connection allows for all truck data to be read quickly and reliably on a mobile device.
