T20 - T25 R Electric Pallet Truck Series 1154

Compact, agile and powerful

360 view - frame 1

Fast and versatile pallet handling

Thanks to a powerful 3 kW AC motor, the T20 – T25 R pallet trucks can move loads of up to 2.5 Tonnes effortlessly at speeds of up to 10 km/h. Without a load, it can move around the warehouse at speeds of up to 12 km/h.

Ideal for loading and unloading trucks, these compact forklifts offer a high seating position, so drivers have a clear view of the load and their surroundings in both directions. Operators are also always kept safe and surrounded by the truck’s protective contour. The T20 – T25 R pallet trucks are extremely agile thanks to their compact chassis. Their intuitive one-handed control allows precise manoeuvring even in tight spaces and the innovative 'Tip Control' allows the truck to be controlled precisely and intuitively with one hand.

The trucks also deliver energy saving features with an ECO mode that can be enabled for a 12 percent reduction in power consumption.

Lift Capacity

2.0-2.5 tonnes

Engine Type

Electric

Ion TechnologyPB Technology

Characteristics

  • Driver’s body surrounded by the protective vehicle contour.
  • Warning light offers maximum visibility of the truck.
  • Level compensation ensures stability on uneven surfaces.
  • Optional load backrest to prevent falling loads.
  • Rounded chassis steers the truck away from obstacles.
  • Lateral standing position and padded backrest.
  • 'Tip Control' enables precise and intuitive control with only one hand.
  • Adjustable base plate for driver customisation.
  • Padded handle and adjustable platform.
  • Compact chassis for improved agility.
  • Intuitive one-handed control for precise manoeuvring.
  • Transports loads of 2.0 to 2.5 tonnes at speeds up to 10 km/h.
  • Lateral seating position for optimum visibility.
  • Easily accessible components and maintenance-free technologies reduce servicing time and expenses.
  • Fast digital diagnosis via CAN bus connection.

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Drive Wheels for any Application

There is a selection of different drive wheels for different applications. Wheels are available in polyurethane, profiled solid rubber and non-chalking solid rubber, and there are wheels with wet grip material for wet ground conditions.

Heated Leather Seats

Leather seats and adjustable seat heating increase driving comfort when used in cold storage or in cold environments.

Linde Fleet Management

Linde’s fleet management system, FleetFOCUS, can be used to manage your truck fleet. From maintenance scheduling to documentation of the maintenance and repair history, through to access control.

Load Protection Grid

A load protection grid with a height of 1,115 or 1,875 mm ensures that loads cannot slip backwards and fall on the driver when the load carrier is raised.

Level Compensation

The system compensates for uneven ground and ensures that all wheels remain in constant contact with the ground, guaranteeing the stability of the forklift in every situation.

Panoramic Mirror

The panoramic mirror prevents blind spots in the driver's field of vision. The all-round visibility increases safety for the driver and the surroundings.

Lateral Battery Change

The lateral removal with roller bearings enables 4 PzS batteries to be changed quickly, which is especially ideal for multi-shift operation.

Tandem Load Rollers

The tandem load wheel is available in polyurethane and abrasion-resistant polyurethane versions.

Speed Reduction with Lowered Forks

An automatic reduction in travel speed when the forks are lowered makes load handling particularly safe and efficient.

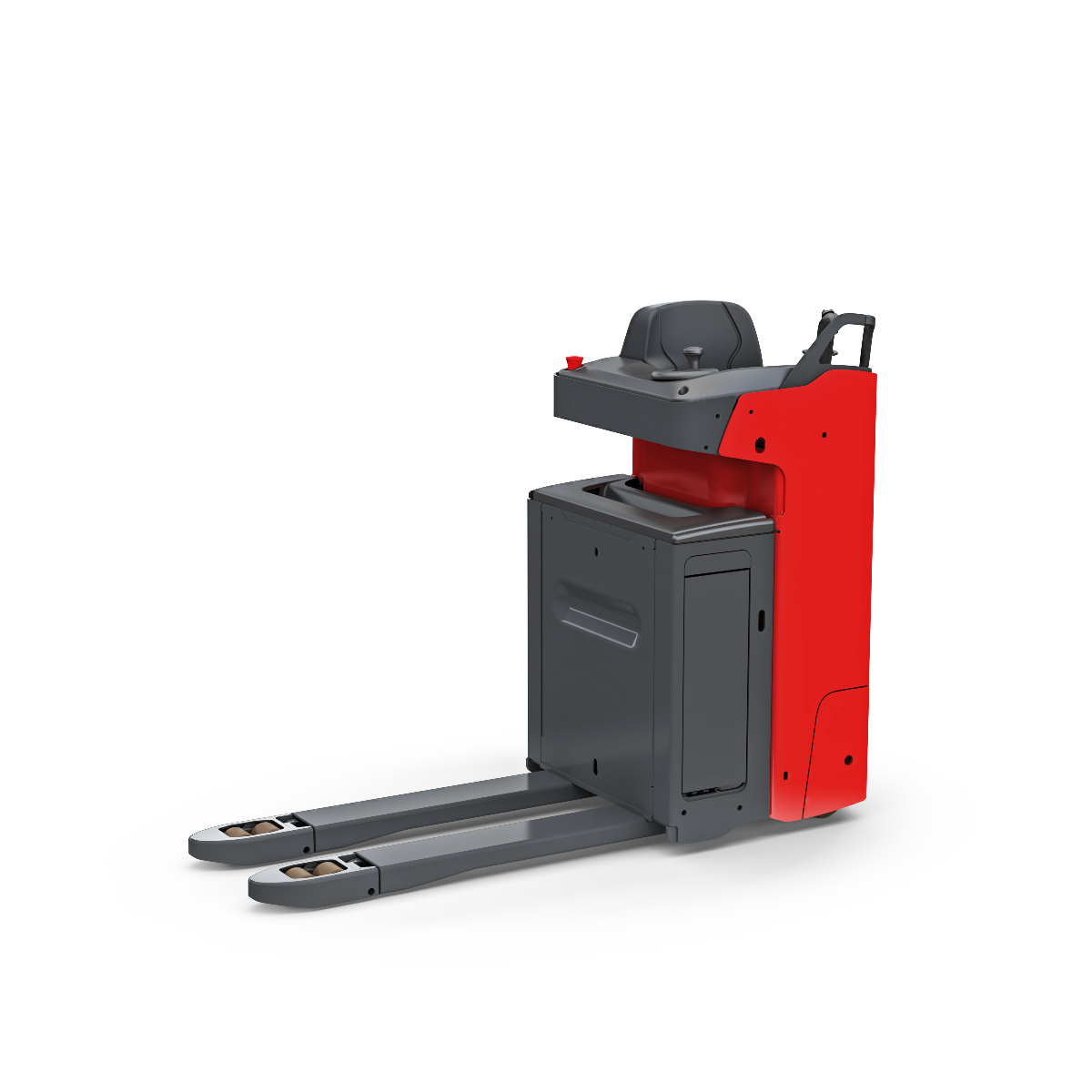

T20 - T25 R Electric Pallet Truck product image
