T16 - T20 Electric Pallet Truck Series 1151

Robust and reliable

Robust safety when manoeuvring and transporting

The T16 and T20 pallet trucks have a particularly rugged construction. The tiller and motor cover are made of fibreglass reinforced materials and can work reliably and continuously for a long time, manoeuvring, order picking, and transporting.

The low chassis provides more safety by covering all of the wheels so the user's feet do not come into contact with them. With the tiller mounted at a very low point on the truck, the operator is at a safe distance from the pallet truck with the tiller folded down.

The effective electric braking system is also important for the safety of the T16 and T20. The trucks accelerate quickly with the powerful AC motor, and the booster effect provides even more output in difficult situations. Depending on the version, they boast a lifting capacity of 1.6 - 2.0 tonnes.

Lift Capacity

1.6-2.0 tonnes

Engine Type

Electric

PB TechnologyIon Technology

Characteristics

  • Wheels are completely covered by the chassis thus protecting operators feet.
  • Low tiller mounting point guarantees that the operator is at a safe distance from the truck during motion.
  • If the operator moves the tiller to the top or bottom end position, effective electromagnetic brakes ensure it stops quickly. The same applies if the operator releases the drive switch.
  • Design of the tiller handle protects the operator's hands from impacts.
  • All control elements can be easily accessed with both hands.
  • Tiller has a long lever that makes it easier to control the truck in tight corners.
  • Powerful, digitally controlled AC motor ensures rapid acceleration.
  • Adjustable performance parameters for special conditions of the site, thus increasing handling capacity.
  • Booster effect helps the motor automatically increase torque, and as a result, performance — making difficult situations such as climbing gradients or driving over potholes easy to master.
  • Creep speed button helps the truck to be manoeuvred slowly, even with the tiller in the vertical position, making many work processes easier if there is little space available.
  • Large drive wheels absorb impacts and make the truck more stable on uneven surfaces.
  • The AC motor requires no servicing.
  • Components are easily reachable.
  • CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
  • Tiller and motor cover are made of particularly tough, fibreglass-reinforced materials which helps to prevent damage and reduce service costs.

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Acoustic Signal

Buzzer sounds different from the standard horn and can be heard better in loud environments.

Integrated Charger

Increases flexibility: The pallet truck can be charged nearly everywhere and at any time.

Load Backrest

Backrest stabilises the load and prevents the pallets from sliding.

Lateral Battery Replacement

The battery can easily and effortlessly be replaced from the side of the truck using rollers.

Access Control

Fleet management software from Linde informs the fleet manager or warehouse manager who is at the wheel of which truck. The operator must identify themselves using a PIN or a RFID card before they can start the truck.

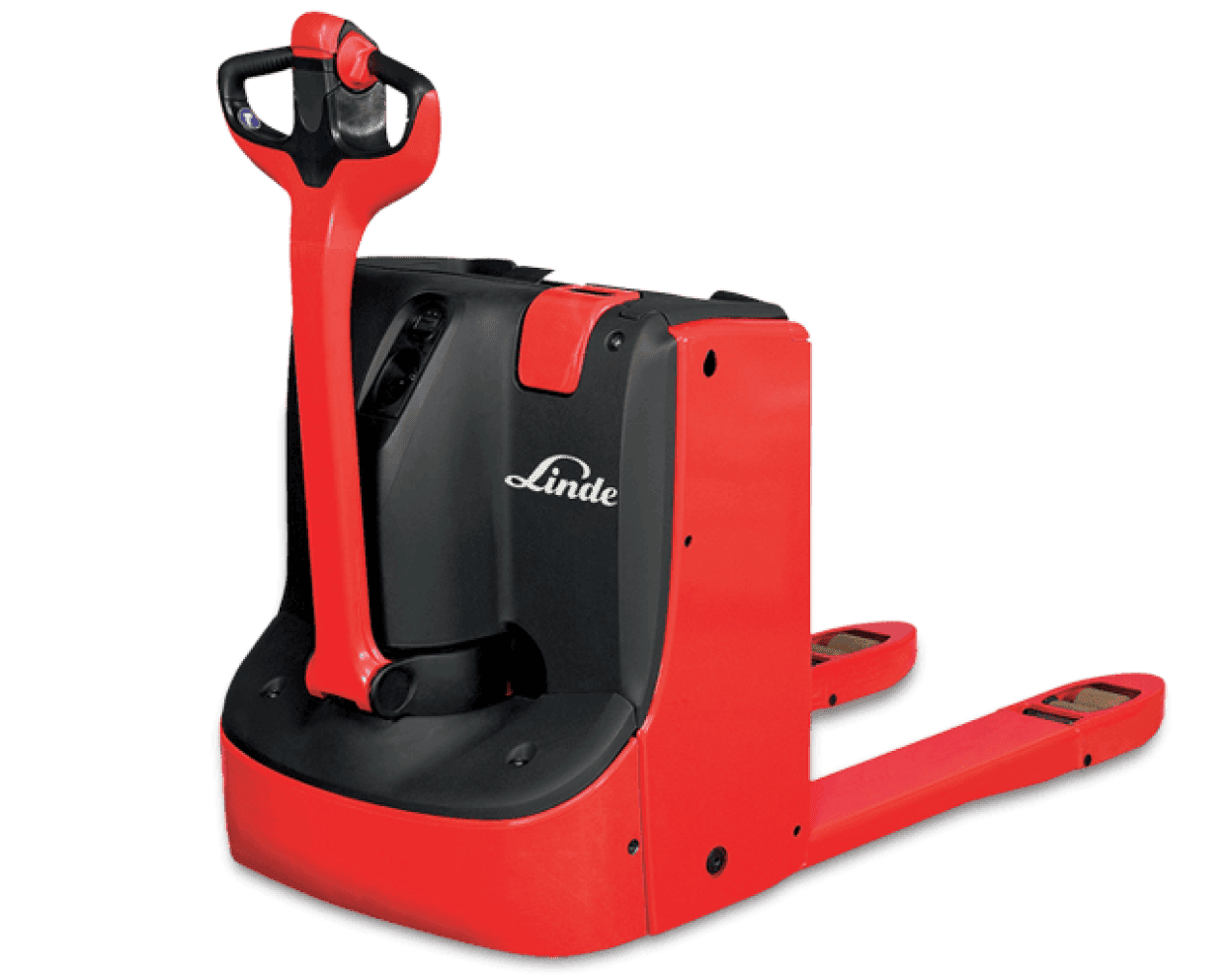

T16 - T20 Electric Pallet Truck Series 1151 - 1.6 - 2.0t Electric pallet-trucks product image
