L14 - L16 AS/AP Electric Pallet Stacker Series 1173

Manoeuvrable all-rounder

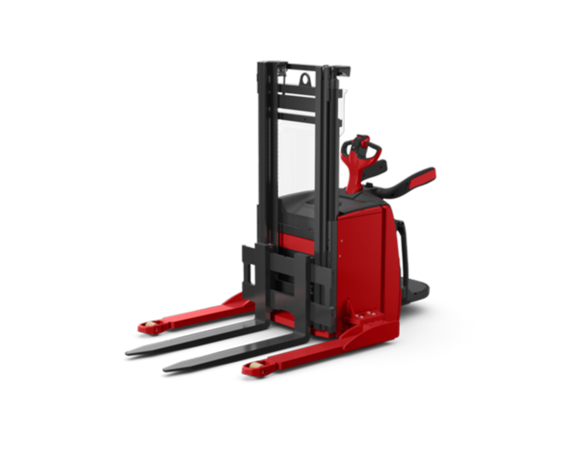

360 view - frame 1

Quick and nimble through narrow aisles

The L14 – L16 AS/AP electric pallet stackers are perfectly suited for quick, efficient pallet handling in tight spaces. The compact dimensions and small steering radius of the straddle stackers enable a high handling performance in the tightest of spaces.

With two different versions available, the trucks can be adapted to suit the exact requirements in the warehouse. The version without an operator platform is more convenient for narrow aisles in high rack warehouses and block warehouses. The foldable operator platform version offers greater comfort over long distances. Both models put the operator's safety first as their feet are protected by the low chassis with rounded corners. Thanks to the powerful 2.3 kW AC motor, the straddle stackers can move loads between 1.4 and 1.6 tonnes at top speeds of up to 10 km/h (for foldable platform version).

The adjustable straddle legs enable the transport of closed pallets and load carriers with different widths. The electric steering also helps to achieve a high handling speed, allowing the truck to be manoeuvred effortlessly and with the utmost precision.

Lift Capacity

1.4-1.6 tonnes

Engine Type

Electric

Ion TechnologyPB Technology

Characteristics

At high speeds and turnover rates, the L14 – L16 AS/AP puts the operator's safety first.

  • All the wheels are located inside the chassis, which protects the operator’s feet.
  • No corners or edges on which the operator could injure himself.
  • Electromagnetic, load-dependent braking system reacts instantly whenever the operator leaves the platform, presses the emergency stop button or releases the operating switch.
  • Truck automatically reduces its speed when cornering.

Both versions of the L14 - L16 AS/AP electric pallet stacker are ahead of the game when it comes to ease and efficiency of operation.

  • All operating and lifting functions can be operated with just one hand – either the left or the right – without the operator having to let go of the tiller.
  • Electric steering allows the steering resistance to be individually adjusted, enabling effortless transportation and precise manoeuvres.
  • In the version of the truck with the operator platform, the rubber-mounted damped platform reduces the physical strain and prevents fatigue.
  • ISO forks and adjustable straddle legs makes it suitable for handling closed pallets and load carriers with different widths.
  • Linde OptiLift® control helps the operator use millimetre precision when lifting and lowering the mast of the truck, which allows for effortless pallet handling.
  • Powerful 2.3-kW AC motor for speeds of up to 10 km/h (for foldable platform version). This enables loads of up to 1.6 tonnes to be transported and stored quickly and efficiently.
  • Maintenance-free 2.3-kW AC motor guarantee high availability.
  • CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
  • All the important components are easily accessible.

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Alternative Drive Wheels

The customer can choose from a variety of drive wheels to suit the operation environment – for example, wheels made from non-marking polyurethane or wet-grip material for use on damp surfaces.

Cold Store Design to -30°C

The cold store variant guarantees full availability and performance of the pallet stacker down to minus 30 degrees Celsius.

Safety Speed – Pedestrian Truck

Automatic acceleration and deceleration: the travel speed adapts to the tiller position, the more upright it is, the slower the truck goes.
