L10-L12 B AS Electric Pallet Stacker Series 4596

An agile pedestrian pallet specialty

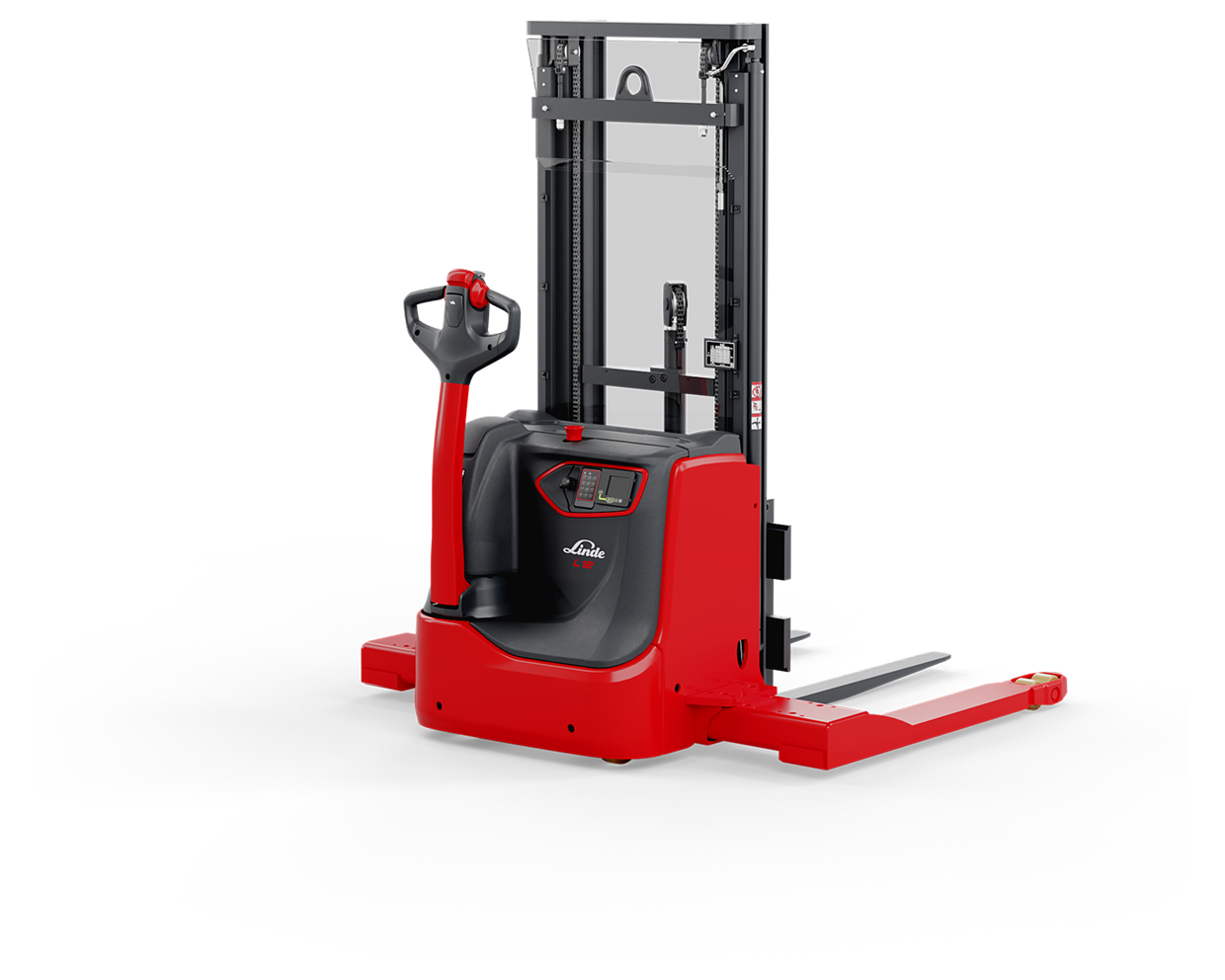

360 view - frame 1

Flexibility in low-clearance aisle applications

The Linde L10-L12 B AS Series 4596 Electric Pedestrian Pallet Stacker, with adjustable straddle arm widths, is ideal for stacking closed pallets, and ensures efficient load handling with low under-clearance.

Showcasing lifting capacities of up to 1.2 tonnes, the L10-L12 B AS electric pallet stacker is ideal for light to medium-duty applications in dispatch, warehouse and production areas.

With ergonomic tiller controls and a low chassis, these pallet stackers deliver safety and comfort during operations.

Lift Capacity

1.0-1.2 tonnes

Engine Type

Electric

Ion TechnologyPB Technology

Characteristics

The entire pallet stacker is designed with a focus on safety, with features including:

  • An asymmetrical tiller that enables a clear view of the forks and surroundings.
  • A low chassis and optional active foot bumper for increased safety.
  • A long tiller arm that allows for a safe distance from the truck.
  • Load management which monitors residual load capacity (optional).
  • Creep speed and proportional speed to ensure safe manoeuvring (optional).

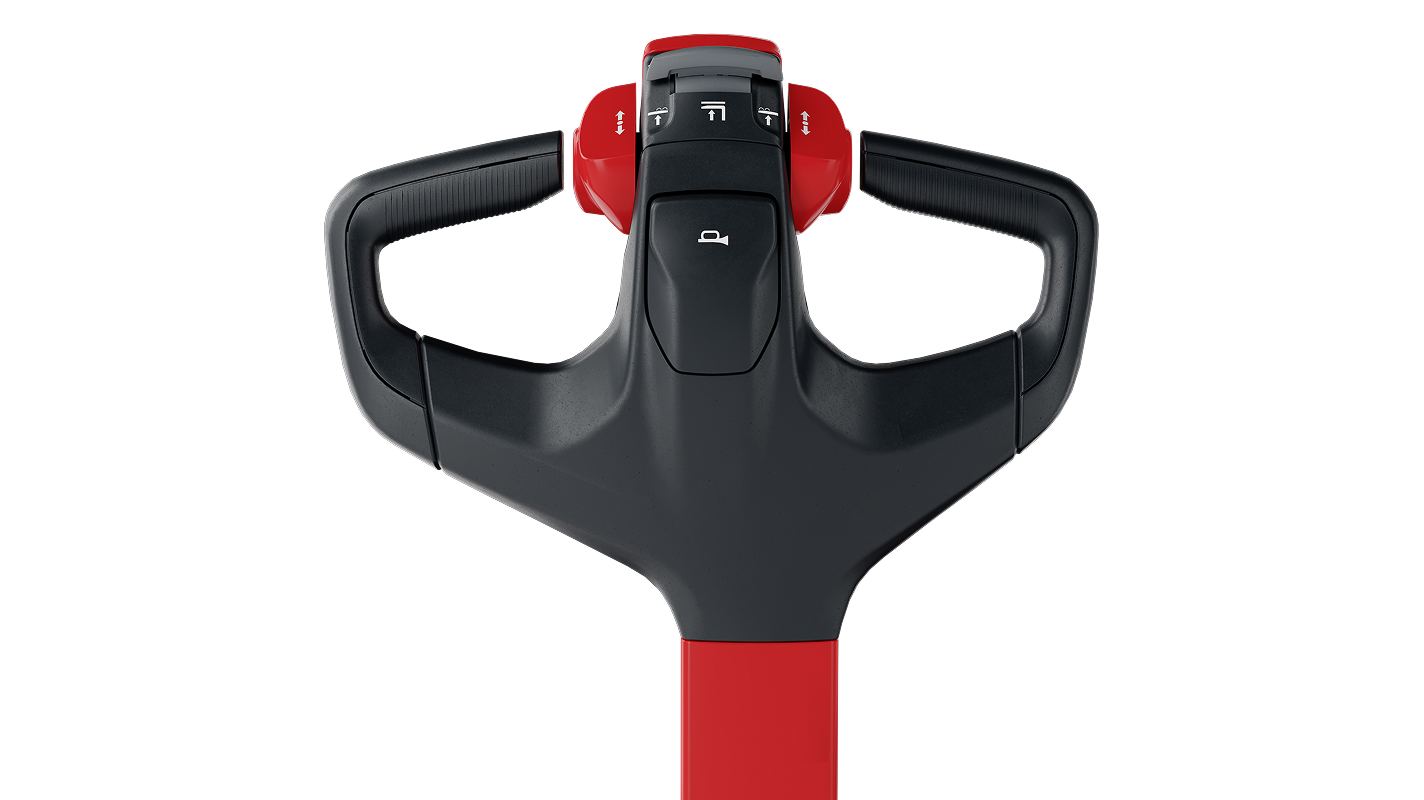

  • Off-set, ergonomic tiller head with easily accessible controls.
  • Comfortable controls enable one-handed operation for all functions.
  • Long, low mounted tiller for smooth steering movements.
  • Spacious storage compartments provide space for working materials.
  • Adjustable straddle arm width.
  • OptiLift proportional lifting system enables precise load handling.
  • Powerful 1.1 kW drive motor to ensure productive transport.
  • Able to reach a speed of up to 6 km/h, full laden.
  • Soft landing forks enable gentle load lowering.
  • Preventative maintenance service every 1000 hours.
  • Maintenance-free 1.1 kW three-phase motor.
  • Easily accessible components for fast maintenance.
  • CAN bus connectivity enables truck data to be read out quickly.

Videos & Images

L10-L12 B AS Electric Pallet Stacker - pallet-stackers - Image 2
L10-L12 B AS Electric Pallet Stacker - pallet-stackers - Image 3

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Linde Fleet Management

FleetFOCUS, Linde’s fleet management system, can be used to manage your fleet from anywhere. From maintenance scheduling and viewing impact reporting through to access control, FleetFOCUS does it all.

L10-L12 B AS Electric Pallet Stacker - Linde Fleet Management optional equipment

Lithium-ION Technology

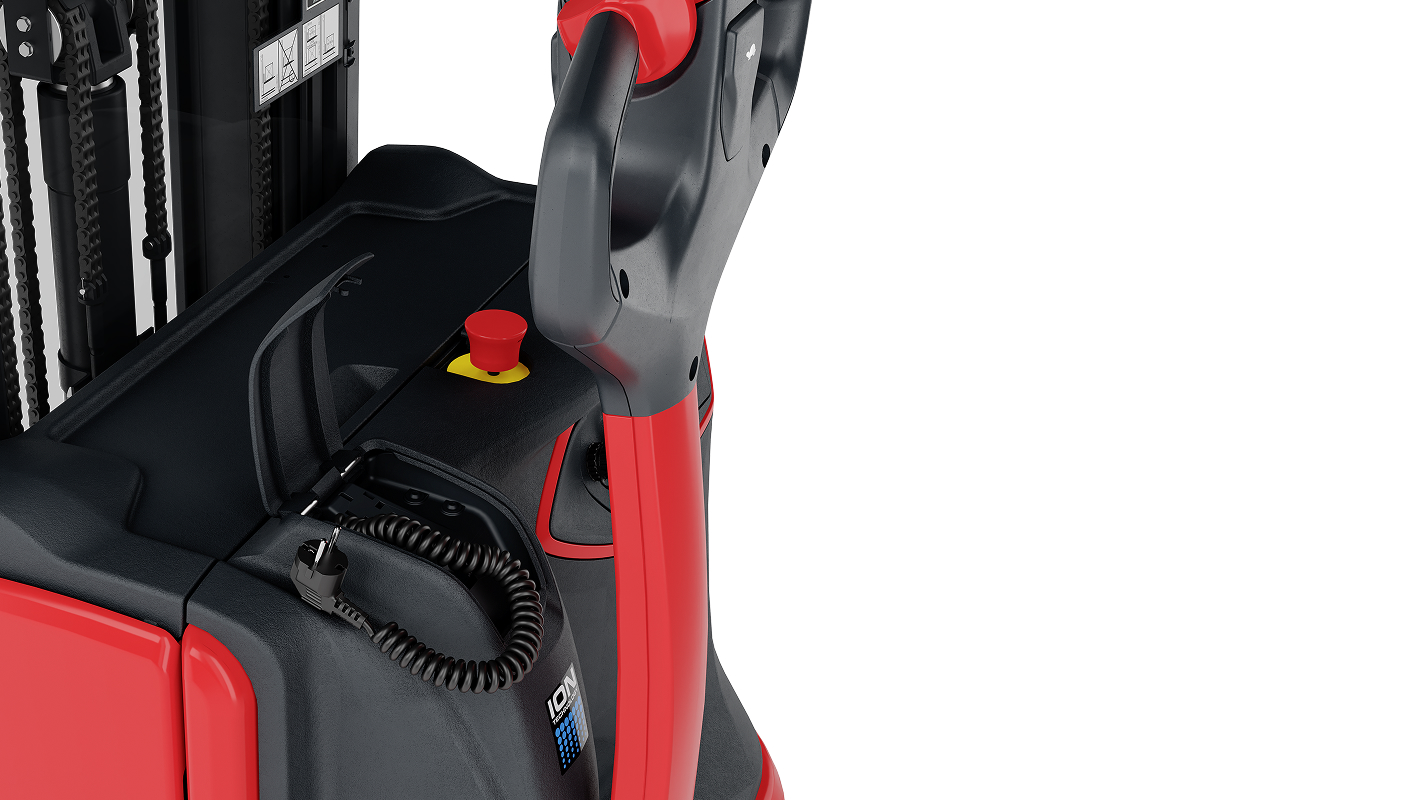

Thanks to the innovative Lithium-ION technology, the batteries are fully recharged after approx. 1.1 hours at room temperature.

Linde BlueSpot™

The Linde BlueSpot™ is an optical warning solution that emits a light signal to indicate that the truck is approaching.

L10-L12 B AS Electric Pallet Stacker - Linde BlueSpot™ optional equipment

Cold Store Design to -35°C

The cold store variant guarantees full availability and performance of the pallet stacker down to minus 35 degrees Celsius.

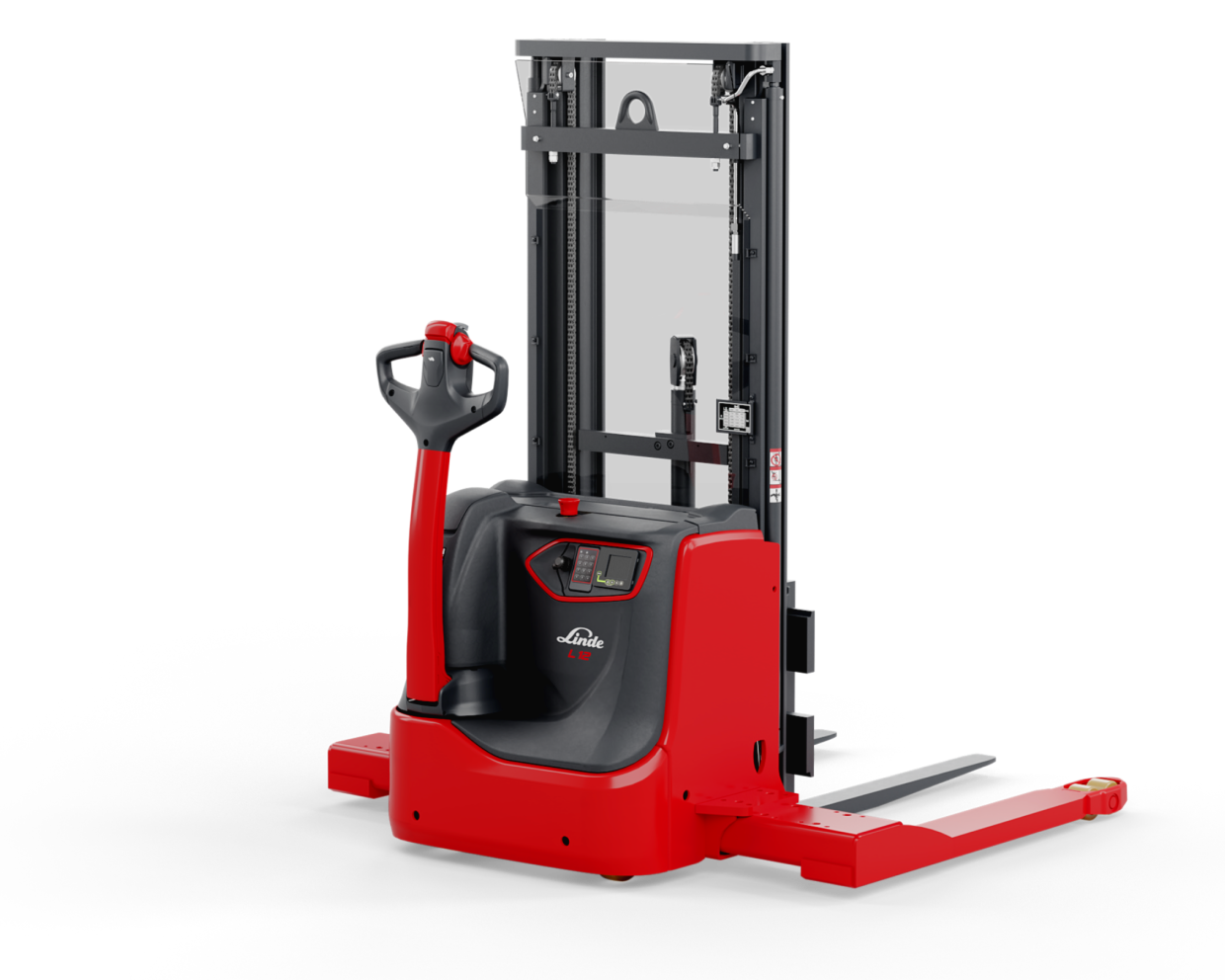

L10-L12 B AS Electric Pallet Stacker Series 4596 - 1.0 - 1.2t Electric pallet-stackers product image
