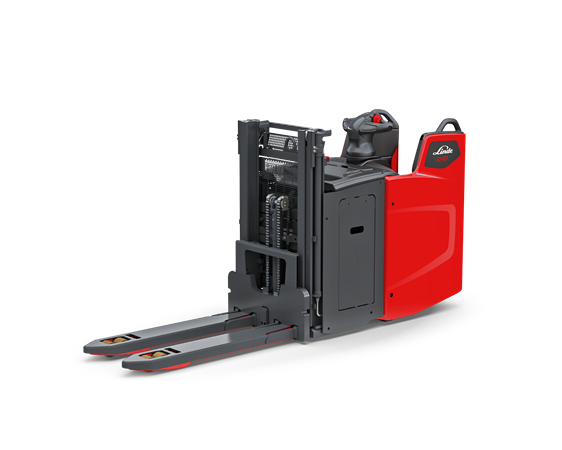

D10 Series 1163 Electric Pallet Stacker

D10 FP version

• Operator remains within the protective truck contours at all times, so there is no risk of injury even when manoeuvring in confined spaces.
• Truck is equipped with a steel chassis that extends to the ground to protect against minor collisions.
• Independently operating braking systems ensure the load and operator are kept safe.
• The entire operator's platform is designed to act as a dead man's switch. As soon as the operator leaves the truck, it brakes automatically.
• When cornering, the truck automatically adjusts the speed to prevent tipping accidents.

D10 AP version

• Folding stand-on platform functions as a dead man’s switch. As soon as the operator leaves the truck, it brakes automatically.
• Two folding side guards keep the operator within the truck’s chassis contour when the platform is being used.
• The truck automatically reduces speed when cornering and when releasing the traction control.
• Optional load guard prevents the goods from slipping or falling.

D10 FP version

• Ergonomically shaped handle can be effortlessly operated with both hands, ensuring precise and comfortable load handling.
• Padded backrest offers additional comfort and ensures that the operator can work in a comfortable posture throughout the entire shift.
• The height of the control handle can be adjusted to suit the operator's physical requirements.
• As an option, the operator's platform can be decoupled from the chassis and suspended, so that shocks are not transmitted to the operator on uneven road surfaces.
• Spacious storage compartments provide ample space for important working materials.

D10 AP version

• Fully suspended stand-on platform reduces shocks and vibrations during operation.
• Ergonomic tiller head allows the operator to control all functions conveniently and intuitively with their fingertips.
• In confined spaces, the operator can precisely manoeuvre the truck in creep speed.
• Equipment, such as gloves and packaging film, are stored in a spacious storage compartment.
• Multifunctional display provides information about the current truck status at a glance.

Compact and powerful 2.3 kW motor provides acceleration up to 10 km/h.

D10 FP version

• Can transport two pallets simultaneously and has a combined lifting capacity of 1.0 tonne.
• Thanks to its narrow design and electric power steering, the truck is extremely agile and can be easily manoeuvred in the tightest of spaces.
• The optional speed management optimises the speed depending on the load weight on the upper fork.
• Depending on the task, the D10 FP can be equipped with different mast types — maximum mast height is 2424mm.
• Optional support wheels mounted to the left and right of the drive wheel provide additional traction and stability.

D10 AP version

• Operator can use the convenient stand-on platform over longer distances.
• The double-deck pallet stacker can carry two pallets with a total weight of up to 1.0 tonne and adapts its speed to the load.
• Between the racking aisles, the small chassis and the creep speed function allow precise manoeuvring.
• The innovative castor wheels ensure optimum stability and traction during goods transfer and pallet handling.

A robust construction and the operation’s maintenance-free AC technology enable long maintenance intervals and guarantee high truck availability.

• CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
• All truck components are easily accessible so that service work can be carried out effortlessly.
