W20 - W30 Electric Tow Tractor Series 5007

The versatile and agile platform truck

360 view - frame 1

Move large and heavy loads with ease

Linde Material Handling’s W20 – W30 electric platform trucks are perfect for moving large, bundled loads of material. The trucks offer a high level of performance, agility and precise manoeuvrability, with smooth steering for effortless operation even in confined spaces. The W20 offers a two tonne capacity and can reach speeds of 20km/h without a payload, while the W30 has a three tonne capacity and is capable of reaching up to 23km/h.

A cabin that’s isolated from the chassis, and a drive axle featuring coil springs instead of leaf springs prevents shocks and vibrations from being transmitted to the driver when on uneven ground.

For safety, the W20 – W30 platform trucks are equipped with several braking systems, including multi-disc and automatic parking brakes. The trucks also feature smart speed deceleration when on ramps or driving downhill, as well as automatic speed adjustment when cornering.

Lift Capacity

2.0-3.0 tonnes

Engine Type

Electric

Ion TechnologyPB Technology

Characteristics

  • Automatic parking brake to avoid rolling on inclines.
  • Foot pedal-activated multi-disc brake.
  • Speed is maintained automatically when driving on ramps or when taking curves.
  • Robust cabin with optional protective bars for windshield.
  • Optional seat belt.
  • Safe and easy battery changes.
  • Electrically monitored cabin doors.
  • With the cabin isolated from the chassis and the use of shock absorbers instead of leaf springs, vibrations and operator fatigue are reduced.
  • Large curved windscreen and spacious cabin for optimal visibility.
  • Convenient storage for work utensils.
  • Powerful electric motors ensure high handling capacities.
  • Precision steering with a small turning circle for high handling capabilities.
  • Optional double mirrors for complete view of vehicle during difficult manoeuvres.
  • Designed for minimal service and downtime.
  • Easily accessible service components.
  • Enclosed brake and control hydraulics.
  • Maintenance-free multi-disc brake.
  • Easily replaceable windscreen.
  • Lateral or vertical battery change options.

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Chassis Length

Available with a short or a long chassis. The two variants have loading areas of 2,200mm and 2,600mm, respectively, and have different wheelbases.

Cab Variants

Cabs without side doors, with flexible roller side doors, with steel doors or with steel doors and windows are available. Protective bars for the windshield are also available.

Air-Conditioning with Integrated Heating

The powerful air-conditioning system, with integrated heating and pollen filter, guarantees a comfortable working environment in the cab all year round, while also preventing windows from fogging up.

Seat Variants

Seats with different fabric covers and an air-suspended driver’s seat are available.

Roadworthy Lighting

A complete lighting system is available with headlights, turn signals, brake, and reversing lights. The lamps are protected from accidents by the chassis.

Bumper

The tow tractors can be equipped with a particularly strong bumper at the front.

Side Mirrors

Multiple exterior mirrors improve driver visibility in heavy traffic and tight spaces.

Camera

The camera at the rear of the tow tractor provides the driver with a better view during difficult driving manoeuvres via a display.

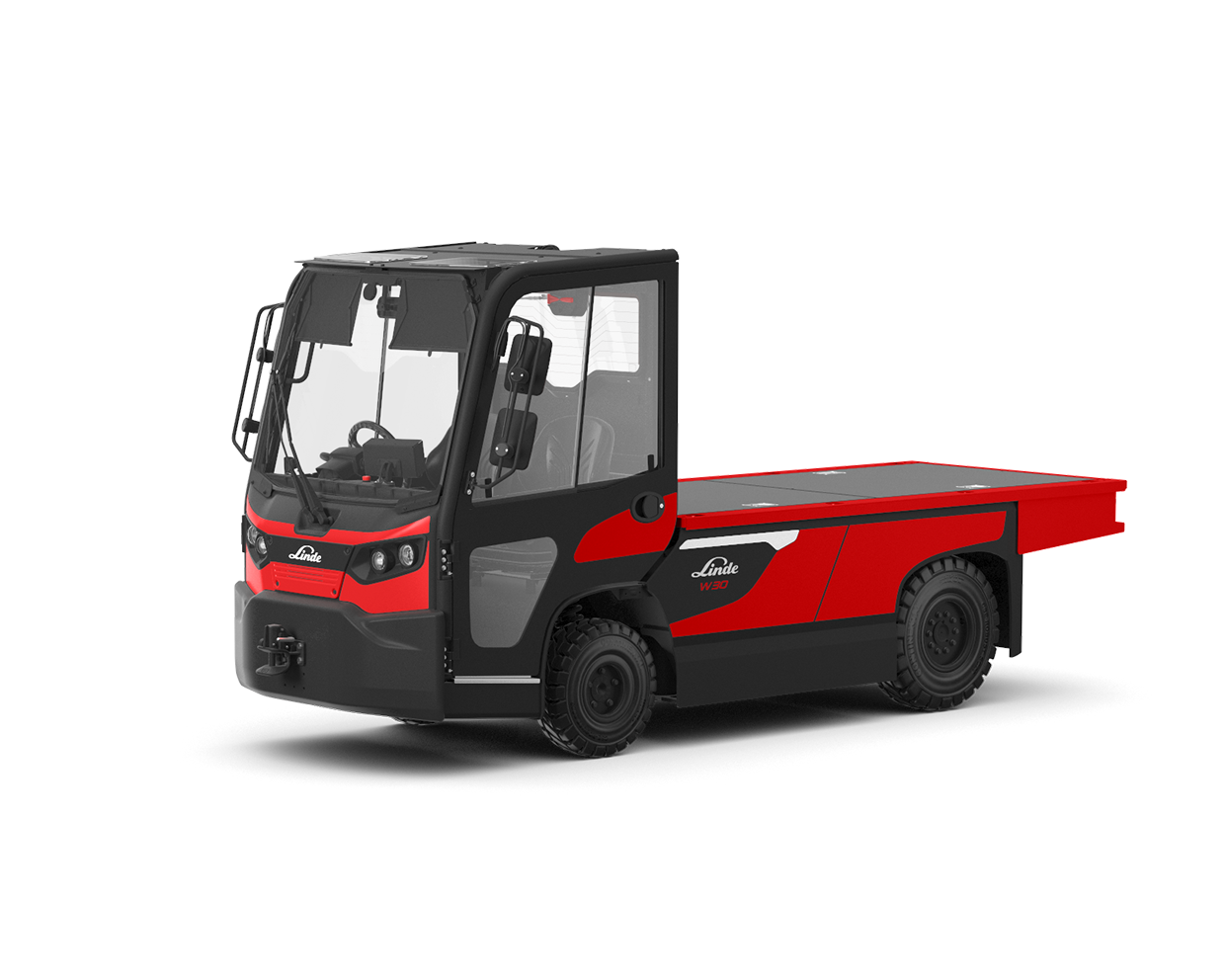

W20 - W30 Electric Tow Tractor product image
