V10 Electric Order Picker Series 5021

Narrow vertical order picker

360 view - frame 1

Ergonomic work space for narrow aisles

The Linde V10 vertical order picker has been designed for order picking tasks at the first and second racking levels, as well as occasional working up to a height of 6.35 metres. The cab and all the control elements meet all the ergonomic requirements for effortless working.

The truck is available with a walk-on loading platform or auxiliary lift. Various lift motors, and chassis, cab and mast variants can be configured in almost any combination. The equipment can therefore be adapted to individual requirements and achieve a high level of picking frequency performance. It can be used with mechanical or inductive guidance or be freely movable — in each case with a maximum load of 1.0 tonne.

Lift Capacity

1.0 tonne

Engine Type

Electric

PB Technology

Characteristics

  • Driver must touch two hand sensors, as well as the dead-man’s switch to be able to move the truck. This prevents misuse or operating errors.
  • Electrically monitored side barriers must be closed to lift the operator platform.
  • When the cab is raised and when negotiating corners, the truck slows down automatically.
  • Optional assistance system, Linde System Control (LSC), helps adjust the speed automatically and completely variably.
  • Simple and ergonomic control, the driver can operate the V10 precisely and effortlessly.
  • Cab provides plenty of space for the picking procedure as it's spring-suspended and protects the operator from shock.
  • Low entry takes the strain off the legs when getting in and out frequently.
  • On the model with auxiliary lift, the low railing on the forks facilitates the operator’s movements between racking and pallet.
  • Various compartment areas and equipment variants, such as radio equipment, fans, data terminal and goods scanners, mirrors and lights, support the operator's work.
  • Powerful AC motors for high lifting and travel speeds.
  • Trucks can move and lift at the same time helping the operator reach the desired racking location in the shortest time via the quickest route.
  • Both of the basic variants of the trucks in this product line can be individually configured to suit any application, with a walk-on platform or auxiliary lift as well as a wide range of cabs, chassis, and mast variants.
  • Economical electric motors and energy return when braking improves the cost-effectiveness.
  • All truck components are easily accessible for the service technician.
  • CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
  • Active cooling system increases the availability of the truck, even under intensive working conditions.
  • Encapsulated rotary current drives are maintenance-free.
  • Battery changing is done to the side using roller beds and a removal rack or by using a crane.

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Acoustic Signal

The signal can be heard when the order picker is moving, giving a warning to pedestrians and other vehicles.

Rescue Alarm

There is the option for the vehicle controller to monitor various sensors on the control panel, side barriers and dead-man’s switch, and to give an acoustic warning if the signals might indicate operating errors.

Control Panel

The control panel can either be fitted only on the load end or on both the load and mast end. The mast end control panel follows the same control logic as the load end panel.

Fixing Systems

Items such as terminals, scanners, clip-boards, writing supports or individual fixtures can be fitted. The attachment bars are mounted on the left and right-hand side of the mast as well as on the load end on the overhead guard.

Linde BlueSpot™

Lane warning device Linde BlueSpot™ enhances safety during operation as the LED spot makes the forklift noiselessly visible in both travel directions.

V10 Series 5021 Electric Order Picker - Linde BlueSpot™ optional equipment

Ergonomic Rest Padding

The ergonomically designed ‘Lean-on Ergoroll’ padding has three adjustment positions, and is used when the truck is operated from the load end. The operator can rest against it during travel.

Inductive Guidance

The trucks have sensors that detect the guide wire in the floor, enabling the truck to be steered safely along the passageway.

Linde System Control (LSC)

The system provides rapid turnaround and increased safety by variably adjusting the speed of the truck dependent upon the steering angle and the lift height.

Pedestrian Buttons

On both sides of the truck, there are push buttons on the lifting mast. Using these, the operator can operate the order picker from the outside whilst walking alongside.

Tilting Barriers

If the operator leans on the barrier, it folds out to the side. This enables them to reach the racking better, making the order picking easier.

Radio Preparation

The truck is fitted with a 12V/50W connection as well as loud speakers and an antenna in the cab.

Mirror Module

The equipment package includes a large rear-view mirror as well as sideways working lights to illuminate the working surroundings in the racking. The package can be supplemented with a fan system to cool the operator when working at height beneath the ceiling in hot weather.

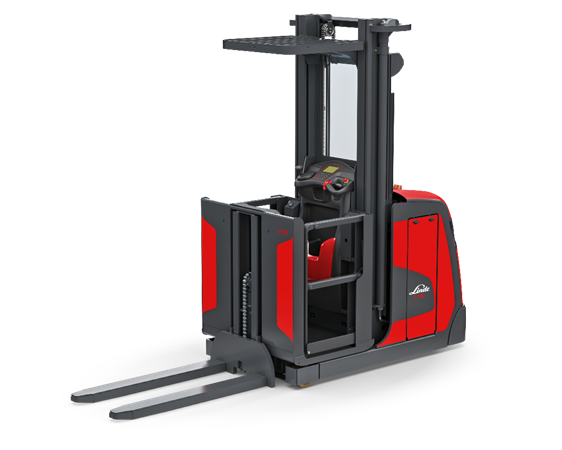

V10 Electric Order Picker product image
