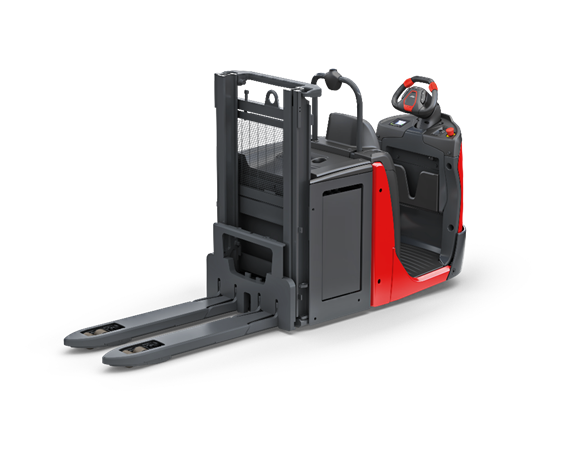

N20 D (HP) Electric Order Picker Series 1115
Powerful double-deck order picker
Picking and transporting on two levels
The N20 D (HP) double-deck order pickers enable the simultaneous loading and transport of two pallets. The ergonomic lift allows the operator to also pick heavy goods at a height that is easy on the back. Two separate levels allow heavy and pressure-sensitive goods to be stowed and transported. The N20 D (HP) is also optimally balanced with five points of ground contact, and guarantees maximum stability even at speeds of up to 12 km/h. Plus with the operator platform being fully suspended, vibrations are heavily reduced.
Lift Capacity
2.0 tonne
Engine Type
Electric
Characteristics
- All edges of the robust steel chassis are rounded.
- Speed is automatically reduced when cornering.
- At the front of the forklift truck there is a steel bumper which can optionally be supplemented by a rubber layer.
- Operator always has a good view of the storage environment because the battery is located behind the operator platform
- Optional front LED and the Linde BlueSpot™ provide visual notification of the truck.
- Linde steering wheel protects the hands and centres itself when operating straight ahead. It only needs to be moved slightly to steer, and can also be operated with one hand.
- When the load is lowered, the fork automatically stops 30cm above the ground, and the rest must be lowered from the operator platform. This prevents the operator from accidentally placing a foot under the fork.
- Low-level order pickers have a low access height of only 13.7cm, which makes frequent entry and exit easier.
- Wide u-shaped design facilitates access from both sides.
- For very short distances, the operator conveniently controls the truck via pedestrian operation, from which the initial lift can also be operated.
- When reversing or when the operator gets on, an additional handle on the backrest ensures optimum support.
- Linde steering wheel and the backrest with fold-out seat are optionally height-adjustable.
- Entire platform is spring-loaded to minimise vibrations and shocks.
- 3 kW AC motor accelerates rapidly to a maximum speed of up to 12 km/h.
- Ergonomic lift, allows the operators to fill two pallets simultaneously and transport pressure-sensitive goods separately.
- Linde steering wheel enables intuitive execution of important operating functions and is easy to control for instance when operating straight, the self-centering steering system ensures shorter distances between two picking positions.
- Initial lift function facilitates transport over ramps and bumps.
- Multifunction display informs the operator of the current status of the forklift truck.
- Optional Lithium-ION batteries are available for even more efficient charging — even during breaks.
- Shelves and compartments ensure the operator always has their documents within easy reach from all positions.
- AC motor is completely maintenance-free and there is no need to readjust the brakes.
- Service check is only required after 1,000 operating hours.
- All main components and can easily be accessed from under the service panel.
- CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
Videos & Images
Technical Data
Optional Equipment
Fleet Management
The Linde FleetFOCUS fleet management solution allows, among other things, for the usage of trucks to be analysed in order to optimise the servicing or utilisation of the fleet.
Linde BlueSpot™
The Linde BlueSpot™ is an optical warning solution that emits a light signal to indicate that the truck is approaching.
