N20 C LoL Electric Order Picker Series 4589

A double-length picking assistant

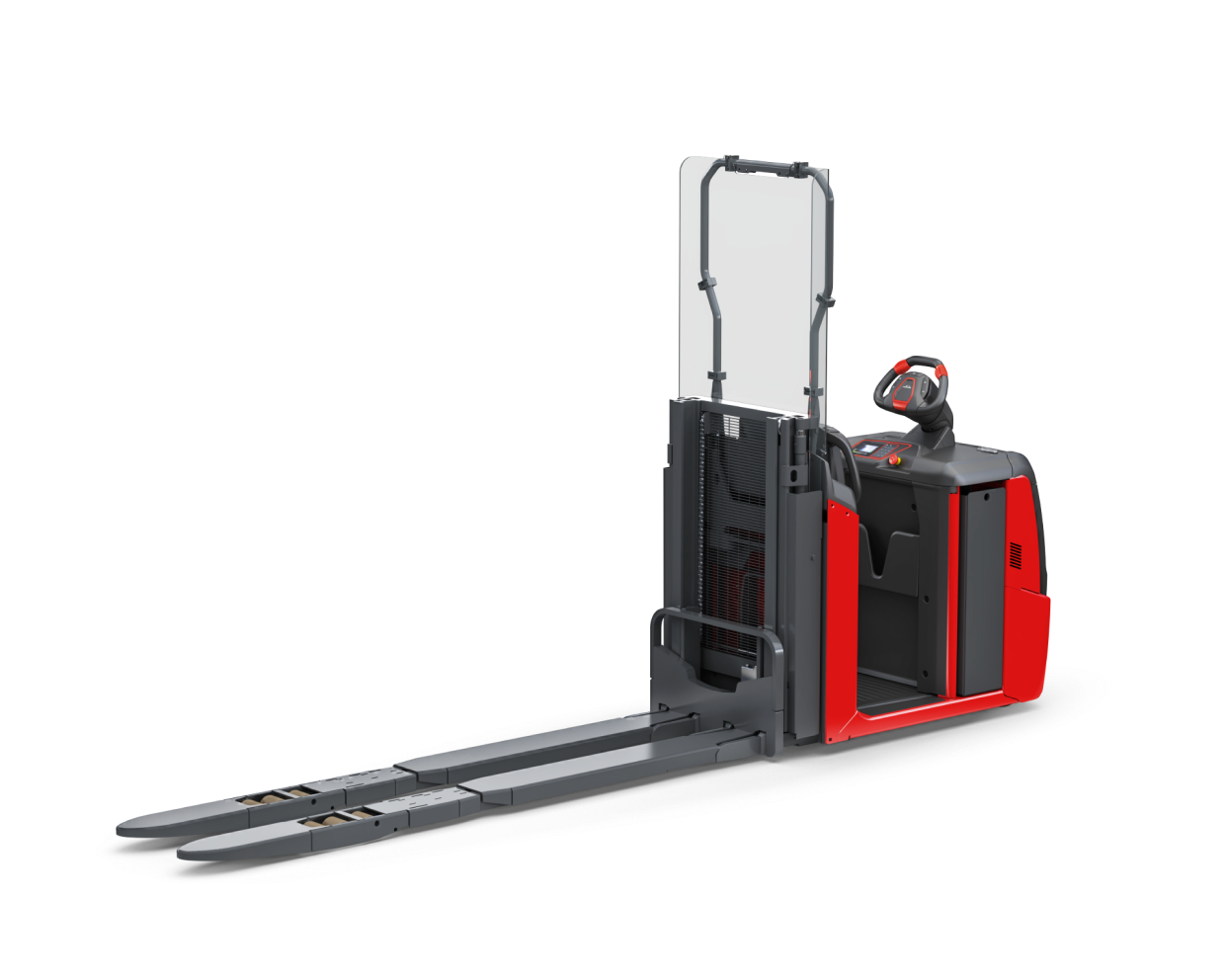

360 view - frame 1

Efficiently picking two pallets in one cycle

The Linde N20 C LoL Series 4589 Order Picker enables double the load transport with its extended forks, ensuring that two pallets can be consecutively prepared in one picking cycle. Able to transport up to 2.0 tonnes at a top speed of 9 km/h, the N20 C LoL prioritises safety by ensuring safe starting on gradients without rollback.

Designed, built and tested for consistent reliability in demanding applications, the motor, sub-components and electronics are all protected within the robust front chassis.

Lift Capacity

2.0 tonne

Engine Type

Electric

Ion TechnologyPB Technology

Characteristics

  • Equipped with an electromagnetic braking system.
  • Four points contact configuration for maximum stability on ground.
  • Automatic speed reduction when cornering.
  • Proportional electric power steering.
  • Wide platform access with low step-in height.
  • Cushioned, rounded-shaped backrest.
  • Platform lifting command is intuitively placed on the Linde steering wheel for one-hand operations.
  • OptiLift systems ensures proportional lift and lowering of platform.
  • Pallet locking device ensures safe transport and easy release of the second pallet (optional).
  • Powerful, high-torque and 3 kW AC drive motor; 2.2 kW lift motor.
  • 7% gradeability performance, fully laden.
  • Safe starting on gradients without rollback.
  • Traction speed of 9 km/h fully laden and 12 km/h unladen.
  • Battery capacity ranging from 345 Ah – 620 Ah.
  • Preventative maintenance servicing is only required every 1,000 hours, this ensures high truck availability and makes these trucks extremely cost-effective to run.
  • Maintenance-free AC motors and adjustment-free brakes.
  • Integrated CAN bus diagnostic system enables fast analysis and short service intervals.

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Masts, fork lengths and widths

Different mast, fork lengths and widths are available. This allows the truck to be adapted precisely to the desired application.

Cold Store Protection to -35°C

Guarantees full availability and performance of the order picker up to -35 degrees Celsius.

Linde BlueSpot™

The Linde BlueSpot™ route warning system increases safety during operation as the LED spot light makes forklifts silently visible.

N20 C LoL Electric Order Picker - Linde BlueSpot™ optional equipment

Lithium-ION battery and charger

Linde’s Lithium-ION batteries are maintenance-free and allow for opportunity charging during breaks or whenever needed.

N20 C LoL Electric Order Picker Series 4589 - 2.0 - t Electric order-picker product image
