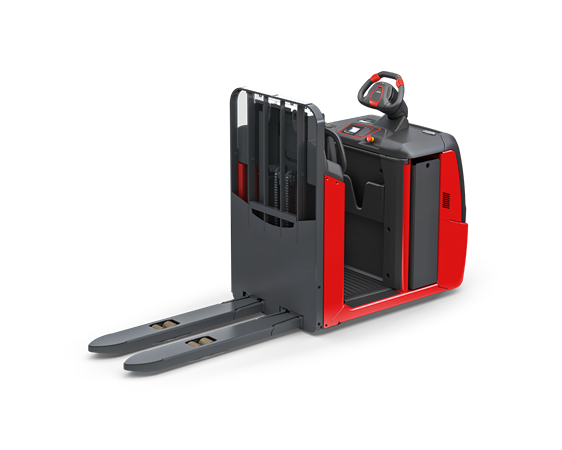

N20 C L Electric Order Picker Series 4590
Comfortable single pallet picking aid
Convenient order picking with free lift
The N20 C L order picker simplifies the picking process with a single pallet in multiple ways: when without load the vehicle can accelerate up to 12 km/h. On bends, speed is automatically reduced to protect the operator, goods and pedestrians. Thanks to the 2.2 kW lift motor, the operator can bring the pallet to a height that is easy on the back and load it with up to 1.2 tonnes.
Since the vehicle is easily accessible and has a pedestrian function on both sides, the operator saves unnecessary travel. Non-slip handles and easy-to-understand operation also ensure higher handling performance. For orders on the first and second rack levels, the N20 C L can be equipped with a lifting platform. A non-slip floor mat provides firm footing at any height.
Lift Capacity
2.0 tonne
Engine Type
Electric
Characteristics
Efficient order picking requires a perfected safety system.
- All outer edges of the robust steel chassis are rounded and lowered so that the operator cannot pinch their feet.
- Mast and lifting cylinder is designed to minimise the risk of injury.
- All-round visibility means that the operator always has a good view of the forks and their surroundings.
- Optional panoramic mirror at the front of the vehicle.
- Automatically slows its speed when turning a corner and increases its braking power with heavy loads.
- If the vehicle registers an unoccupied operator's platform or the emergency button is pressed, it stops immediately.
- For even more visibility in the aisles, front LEDs and Linde BlueSpot™ are available as options.
- Free lift enables ergonomic order picking at operator height, allowing even heavy goods to be placed effortlessly on the pallet.
- Low access on both sides ensures a safe, dynamic order picking cycle.
- Operator can comfortably control their vehicle from both sides using the pedestrian function.
- Both the steering column and the backrest are individually adjustable and can be adapted to the respective operator.
- Ergonomic steering column, automatic drive centering and a cushioned platform that compensates for uneven ground ensures a pleasant driving experience.
- 3kW AC motor helps the order picker quickly reach its top speed of 12 km/h. Even when loaded, it accelerates to 9 km/h and brakes automatically when cornering.
- Linde on-board charger reduces the effort required to charge the battery.
- Optional Lithium-ION battery, the operator can conveniently use work breaks to charge the order picker between tasks.
- Adjustable Linde steering wheel offers intuitive operation.
- All vehicle functions can be safely controlled with one hand.
- Operator's platform is equipped with a storage area, a bottle holder and a paper compartment.
- Service check is only required after 1,000 operating hours.
- AC motor is completely maintenance-free and there is no need to readjust the brakes.
- All main components can easily be accessed.
- CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
- Battery cover can be opened easily to access the diagnosis plug.
Videos & Images
Technical Data
Optional Equipment
Fleet Management
The Linde FleetFOCUS fleet management solution allows, among other things, for the usage of trucks to be analysed in order to optimise the servicing or utilisation of the fleet.
Linde BlueSpot™
The Linde BlueSpot™ is an optical warning signal solution that emits a light signal to indicate that the truck is approaching.
