N16 Li Electric Order Picker Series 1115

Agile order picking assistant

360 view - frame 1

Ergonomic order picking on a pallet

The N16 Li order picker from Linde Material Handling enables a particularly high picking output. The operator platform is positioned in front of the battery giving the driver a good view of the warehouse environment. Even in narrow aisles, they can quickly manoeuvre the truck into the desired position thanks to the small turning circle.

With the aid of the lift, the forks can be raised to an ergonomic height of up to 790mm for loading. The optional Autolift helps the truck automatically lower the forks in proportion to the increasing height of the load. This eliminates the need for manual operation of the lift, and the operator always picks orders at the optimum height without unnecessary interruption. The entire operator platform is spring-loaded and absorbs vibrations and shocks during transport.

Lift Capacity

1.6 tonne

Engine Type

Electric

Ion TechnologyPB Technology

Characteristics

  • Three-part braking system adapts to both the environment and the current load weight.
  • The electromagnetic service brake is coupled with a dead man’s switch and the emergency-stop button.
  • The hydraulically assisted brake increases braking power as the load weight increases.
  • Truck stops automatically when the operating control is released.
  • When cornering, the N16 Li reduces its speed to protect the operator and goods.
  • Optional load backrest stabilises the load, ensuring the safety of the operator.
  • Self-centring power steering requires only a small amount of steering angle, reducing driver movement within the operator platform.
  • Additional options such as a front LED and Linde BlueSpot™ maximise safety in the warehouse.
  • Operator platform with a low access height of 13.7cm allows for easy entry and exit.
  • All contours of the platform are rounded, and numerous compartments and holders provide storage space for necessary equipment.
  • The lifting forks help the operator pick orders at a back-friendly height. This can be supplemented by the Autolift option, which automatically adjusts the height of the forks according to the load height.
  • For short distances, the operator can control the forklift truck using the pedestrian function.
  • Linde steering wheel and the backrest with fold-out seating support are adjustable.
  • Operator platform is fully spring-loaded and reduces vibrations and jolts while operating.
  • Clear symbols on the control elements allow new operators to quickly get familiarised with the system.
  • Powered by a 3kW AC motor, the N16 Li quickly accelerates to a top speed of 12 km/h.
  • Four-point contact with the ground ensures high stability.
  • An initial lift function facilitates transport over ramps and bumps.
  • Optionally available Lithium-ION battery, decreases the recharge time.
  • Multifunction display keeps the operator updated about the current charge status of the order picker.
  • Intuitive control symbols on the steering wheel show the functions of the most important commands at a glance.
  • Optional Autolift function eliminates unnecessary movements by automatically lifting and lowering the forks.
  • Runs for up to 1,000 operating hours without a service check.
  • AC motor is maintenance-free and there is no need for the brakes to be readjusted.
  • All components are easily accessible to the technician after removal of a service panel.
  • CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
  • Robust cast steel bumper protects the spring-loaded operator platform and thus reduces collision damage.

Videos & Images

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Fleet Management

The Linde FleetFOCUS fleet management solution allows, among other things, for the usage of trucks to be analysed in order to optimise the servicing or utilisation of the fleet.

N16 Li Series 1115 Electric Order Picker - Fleet Management optional equipment

Front LED

The LED light is located in the front and has a high level of brightness. It is water and dust proof.

Load Backrest

An additional protection for operator and load is the load backrest, which can be adapted to the height of the load.

Linde BlueSpot™

The Linde BlueSpot™ is an optical warning solution that emits a light signal to indicate that the truck is approaching.

N16 Li Series 1115 Electric Order Picker - Linde BlueSpot™ optional equipment

Lithium-ION Battery

The innovative lithium-ion technology means that the batteries can be fully recharged in around 1.1 hours at room temperature.

Pedestrian Controls

On both sides of the forklift truck there are push buttons on the lift mast. The operator uses them to operate the order picker from the outside and walks alongside at the same time.

Lateral Battery Change

The lateral battery removal by means of roller bearings enables a quick change, especially for use in multi-shift applications.

Rubber Bumper

The rubber bumper reduces shocks in the event of a collision, thus protecting the operator, forklift and infrastructure such as racking.

Accident Monitoring

Whether operating errors, uneven surfaces or improper forklift use – a shock sensor registers shocks. The evaluation of the data via the fleet management software provides information on the cause of damage and accidents.

Access Control

Access control via the connect fleet management system ensures that forklift trucks are only used by authorised persons. The operators must identify themselves by PIN or RFID card before the forklift truck is started.

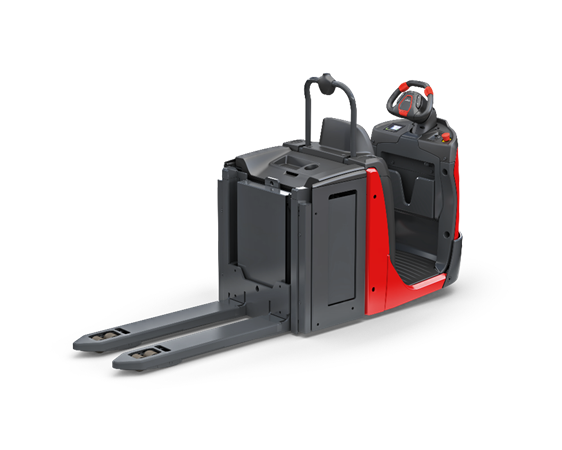

N16 Li Electric Order Picker product image
