R-Matic Electric Automated Truck Series 1120

Automatic precision lifter

360 view - frame 1

Efficient and precise handling at high lift heights

The autonomous R-Matic reach truck transports, stores and retrieves goods up to 1.6 tonnes at heights of up to more than 11 metres. The range of masts means that it is especially suited to handling at medium-high lift heights, and for supplying workstations as well as being suitable for warehouses or material transportation.

The R-Matic uses its innovative 3D camera to detect the storage location in the rack and the pallet openings — it can store and retrieve its load precisely by adjusting the forks. The truck’s geonavigation does not require any additional infrastructure, and it interacts safely and efficiently with individuals, non-automated trucks, or conveyor belts and packing stations. Dual Mode means that the R-MATIC can also be controlled manually.

Lift Capacity

1.6 tonne

Engine Type

Electric

Ion TechnologyPB Technology

Characteristics

  • Truck detects its surroundings using sensors. If the 2D curtain laser system identifies an obstacle, the truck reduces its speed and, if necessary, stops.
  • Uses an innovative 3D camera and a laser to detect pallet openings and loads, and to store and retrieve them precisely at high lift heights.
  • Dynamic Mast Control (DMC) operator assistance system also balances mast movements with targeted countermovements.
  • Geonavigation does not require any additional infrastructure.
  • 3D camera makes handling loads at high lift heights of up to more than 11 metres can take place precisely and efficiently.
  • Truck is especially suited to autonomous storage and retrieval of pallets at medium-high lift heights, and supplying workstations with necessary parts or goods.
  • Option available for loads to be identified via a barcode or RFID scanner.
  • Can import the data read into your business’ ERP and warehouse systems.
  • Geonavigation without additional infrastructure makes it easy, quick and seamless to integrate the R-Matic into intralogistics processes.
  • Truck data from the R-Matic can be read out and analysed using a service laptop.
  • All the electronic service components are also easily accessible.
  • Maintenance-free AC motor developed by Linde ensures that work is not interrupted due to downtime.

Videos & Images

Technical Data

DOWNLOAD DATASHEET

Optional Equipment

Triplex Masts

Various triplex masts are available for the R-MATIC for lift heights of 6.85m to 11.30m.

Barcode Scanner

The truck can be fitted with a barcode scanner, allowing goods to be identified and data to be imported directly into a warehouse system, if required.

Linde BlueSpot™

The Linde BlueSpot™ is an optical warning solution that emits a light signal to indicate that the truck is approaching.

R-Matic Series 1120 Automated Reach Truck - Linde BlueSpot™ optional equipment

Overhang Sensors

Detect whether the goods on the pallets have slipped at the sides and react according to pre-set rules. The truck either stops or takes the pallet in question to a specific storage location.

Safety Edges

A safety edge is required on the load arm for pallet widths of more than 900mm. It stops the truck if the pallet tips when cornering.

Extra Loud Warning Sound

An extra loud warning sound is available as an option for particularly loud working environments.

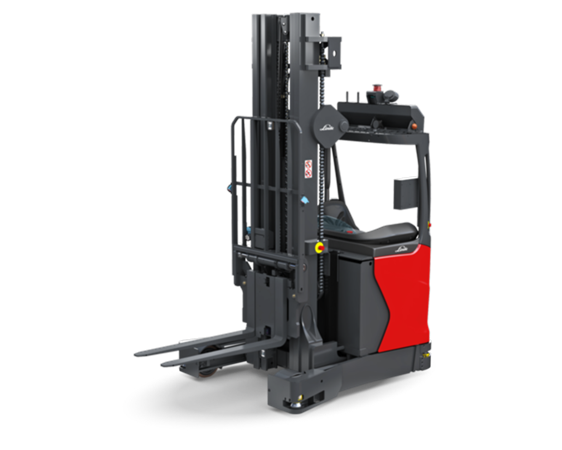

R-Matic Electric Automated Truck product image
