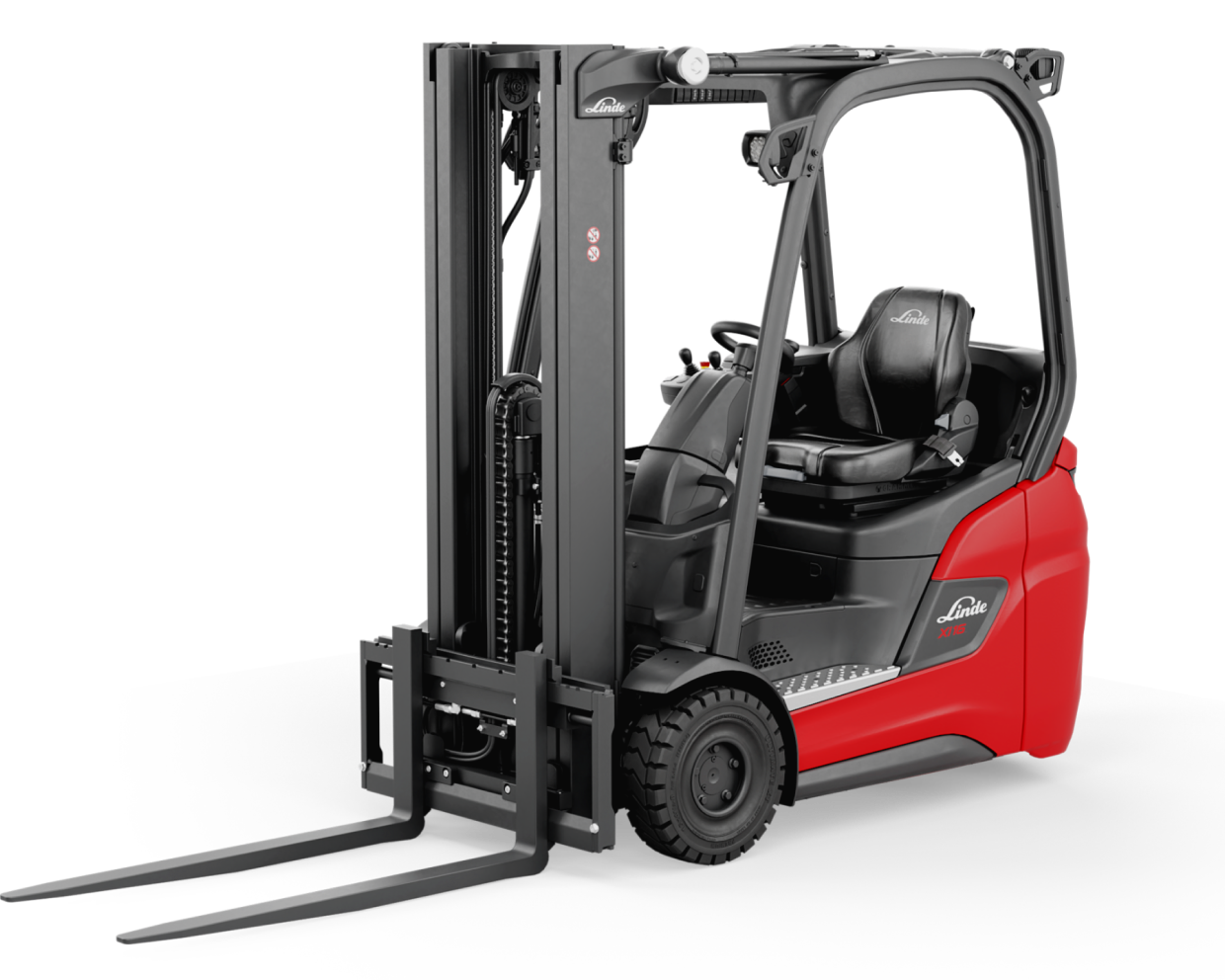

Xi10-Xi20 Series 1251 Electric Forklift (3 WHEEL)

Performance miracle on three wheels

LindeMH

A compact powerhouse for indoor efficiency

The Linde Xi10-Xi20 series 1251 electric forklifts, powered by integrated lithium-ION battery technology for zero-emission operations, offer lifting capacities between 1.0-2.0 tonnes. Designed for light to medium-duty tasks, these forklifts feature a compact three-wheel configuration, ensuring excellent manoeuvrability.

Equipped with a 90 V lithium-ION battery, these forklifts deliver consistent high performance, increasing drive and lift motor efficiency by up to 5%. With lifting and lowering speeds around 20% faster than the industry standard, the Xi10-Xi20 enhances productivity for various tasks.

Safety features, including automatic speed reduction and a foot-activated parking brake offer operators peace of mind during use.

Characteristics

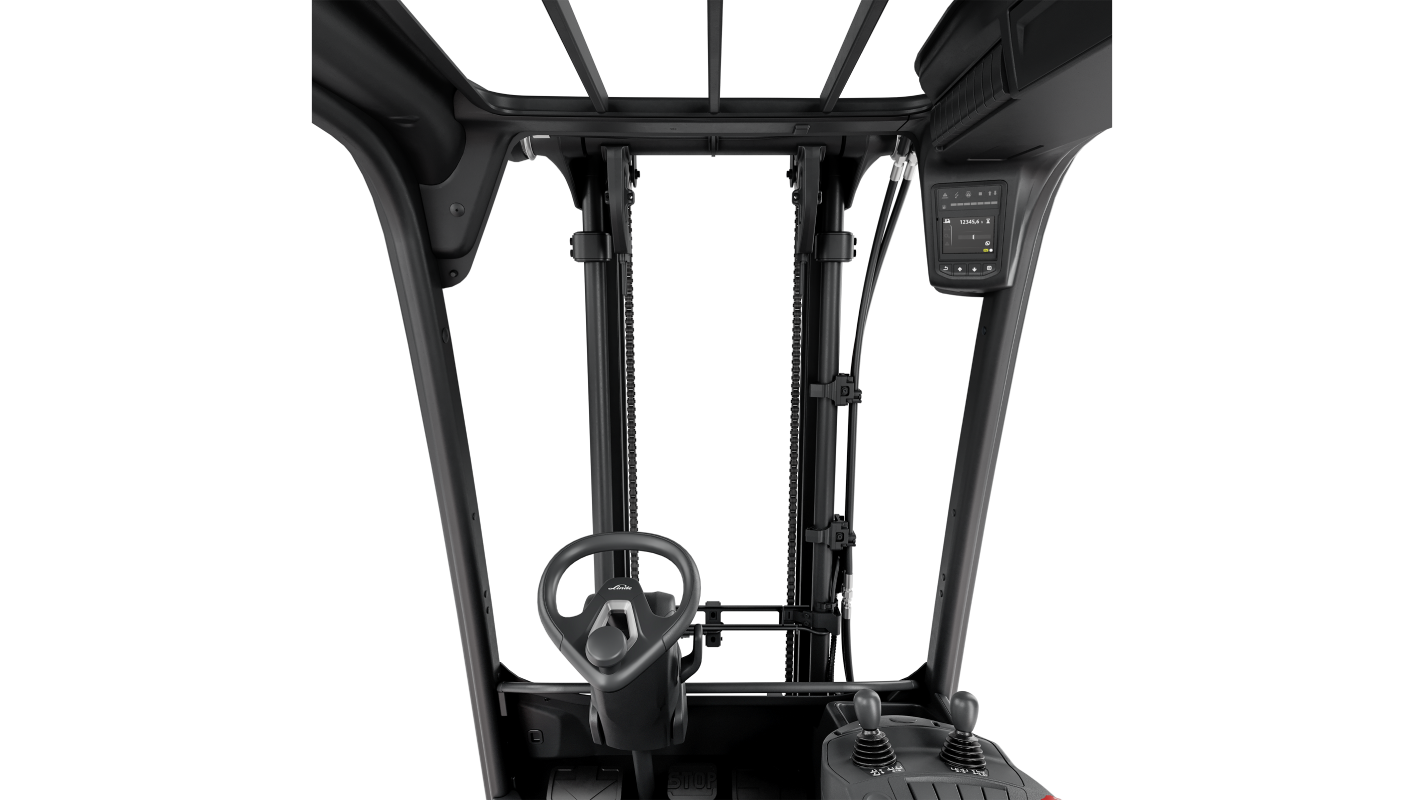

  • Slimline mast, narrow A-pillars, and a lowered front plate for enhanced visibility.
  • Low centre of gravity ensures optimum safety and tipping resistance.
  • Linde Curve Assist adjusts cornering speed to reduce tipping risks.
  • Overhead tilt cylinders enable precise load handling at high lift heights.
  • Automatic parking brake ensures secure positioning on ramps and gradients.
  • Low step-in and spacious cab offer ample headroom and legroom for operator comfort.
  • Linde Load Assist ensures safety when lifting at heights.
  • Spacious cabin with a 3.5 inch display for essential truck information.
  • Elastomer ring bearings isolate the workstation, reducing vibration and operator fatigue.
  • Twin pedal control and Linde Load Control enable intuitive operation.

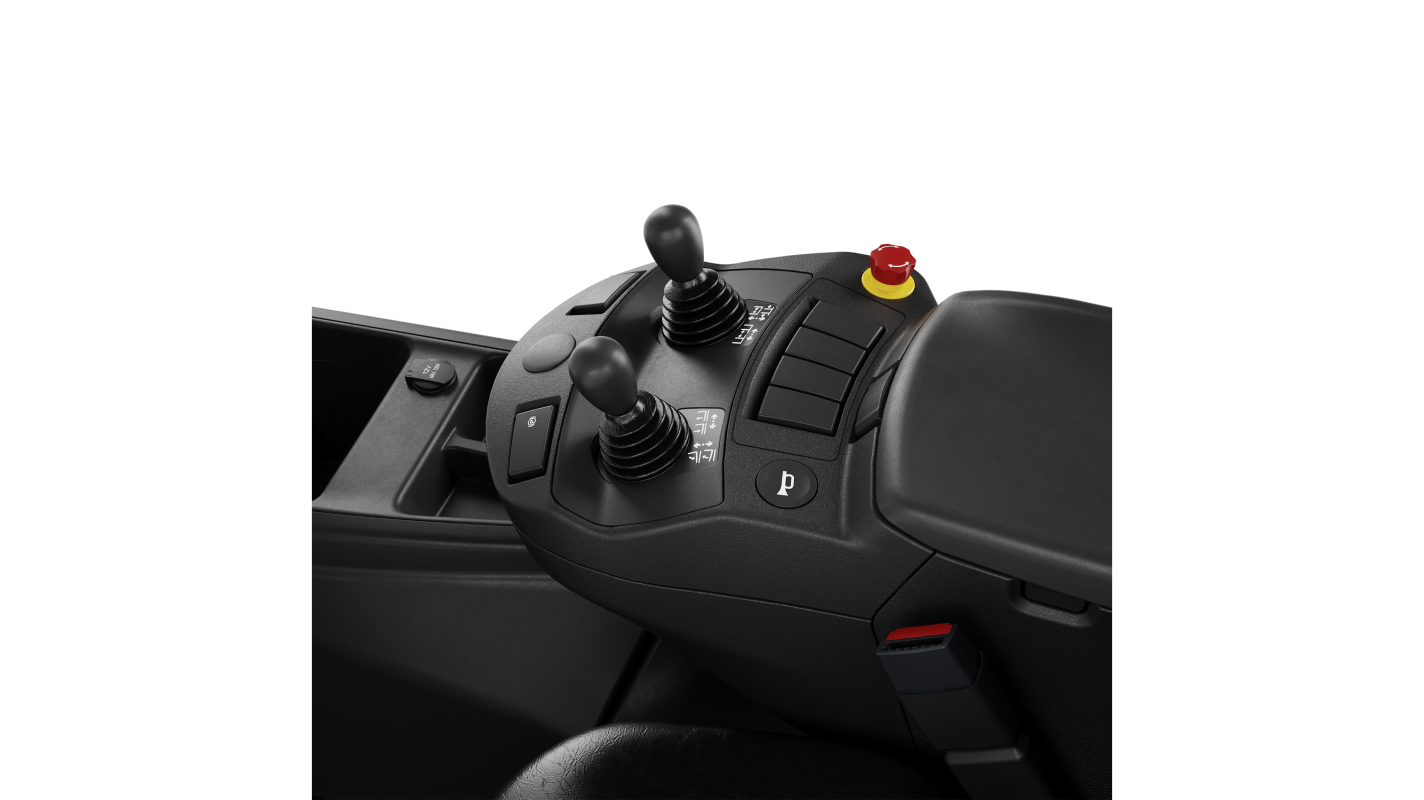

  • Linde Steer Control offers a choice between a mini wheel or joystick for precise handling.
  • Powerful 90-V technology supports continuous multi-shift operations.
  • Li-ION batteries with plug-and-play functionality ensure seamless power management.
  • Side access and open chassis design enable quick and easy battery changes.

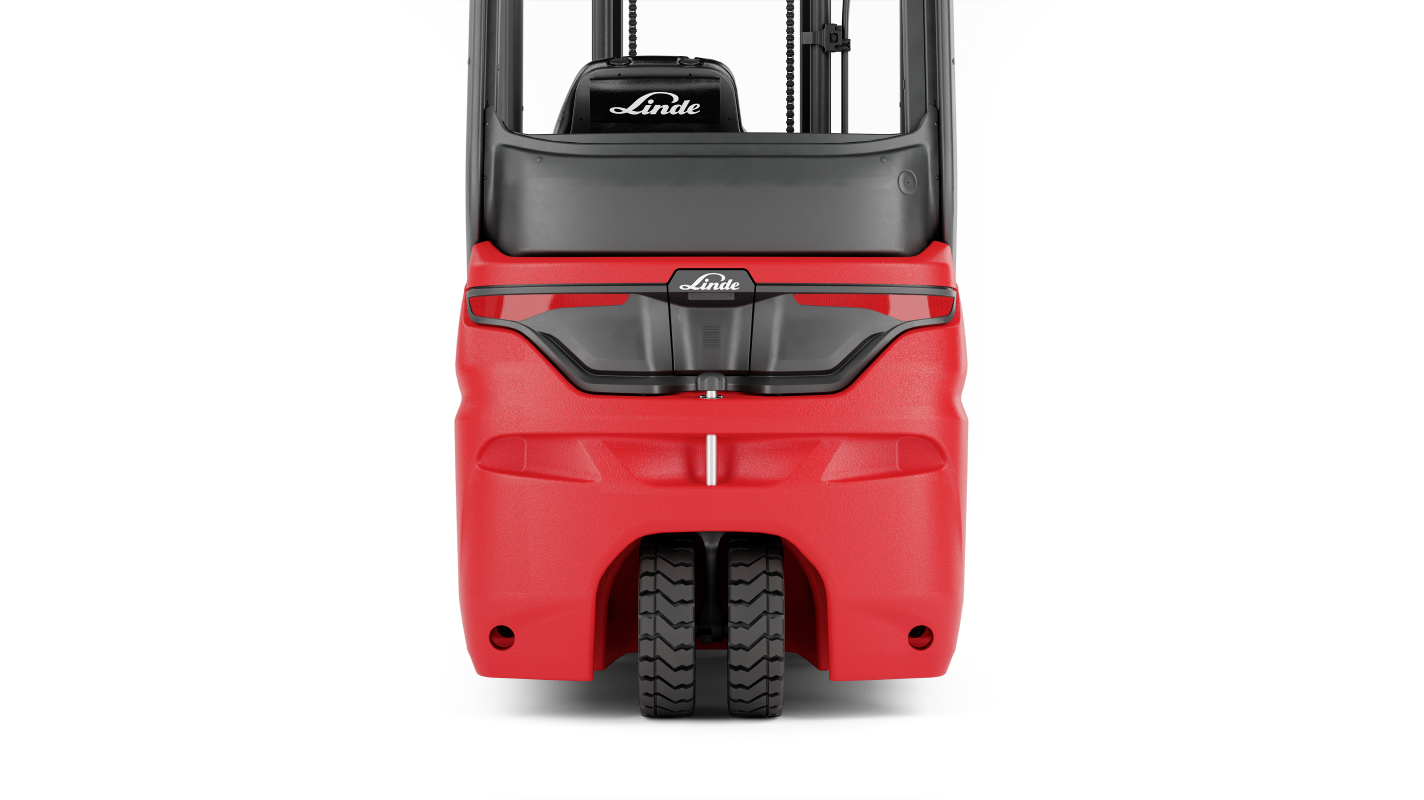

  • Compact three-wheel design offers exceptional manoeuvrability in tight spaces.
  • Equipped with dual motors (2 x 6.5 kW drive motors and 13 kW lift motor) for superior performance.
  • Handles gradients up to 58% with ease.
  • Reaches traction speeds of up to 20 km/h, laden or unladen.
  • Service intervals adjust based on real-time operating hours.
  • Remote diagnostics identify wear or damage early to minimise downtime.
  • Modular components like the mast or workstation allow quick replacements.
  • Extended maintenance intervals, such as hydraulic oil changes every 6000 hours, improve efficiency.
  • Fully enclosed, maintenance-free drive components ensure reliable operation.
