E14-E20 Series 1251 Electric Forklift (3 WHEEL)

A compact top performer

LindeMH

A compact performer for efficient operations

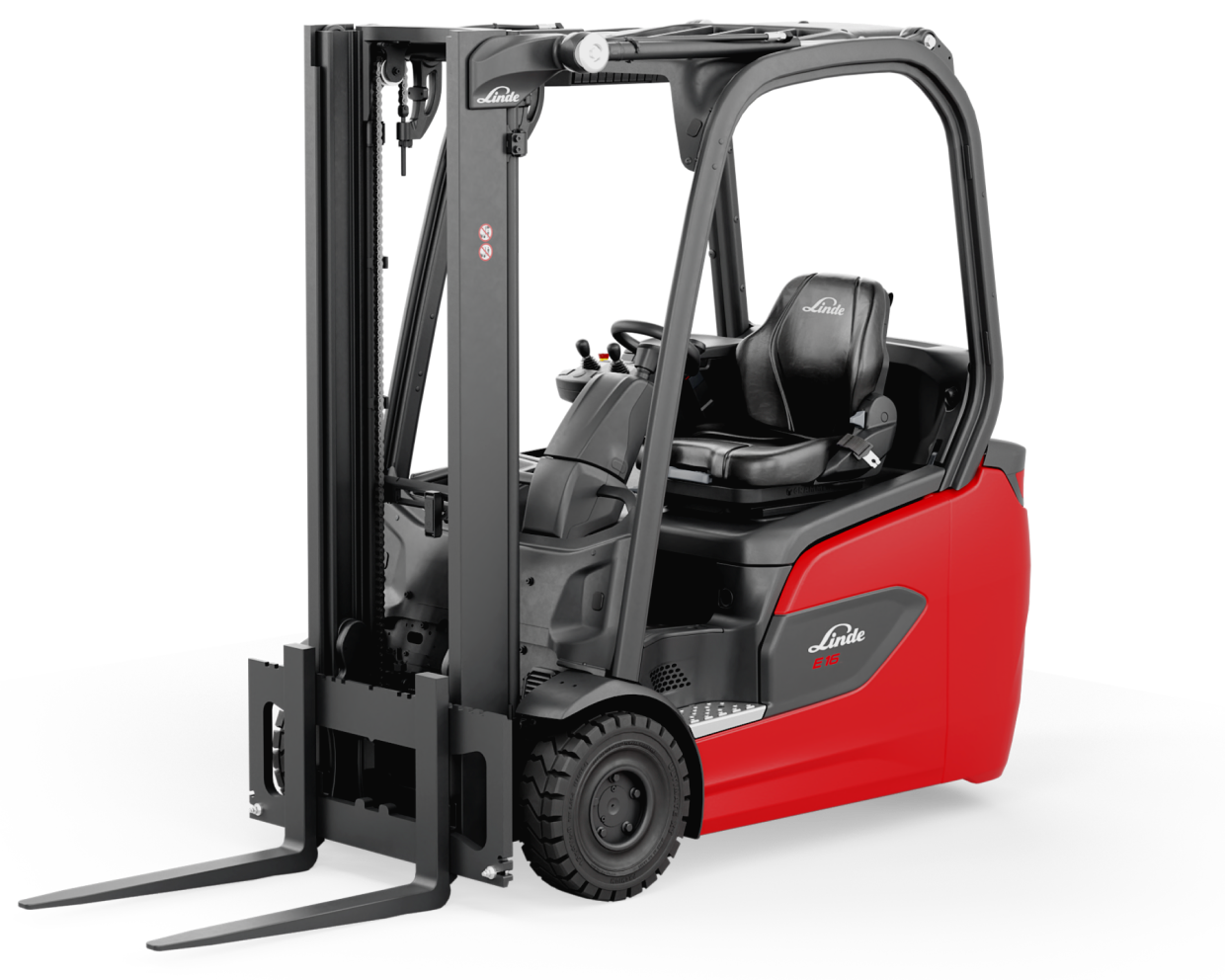

The Linde E14-E20 series 1251 electric counterbalance forklifts offer lifting capacities of 1.4–2.0 tonnes, and a range of energy options, including lead-acid batteries, Li-ION technology, or fuel cell systems, to suit various operational requirements.

Designed for optimal manoeuvrability in tight spaces, these forklifts feature a compact build with speeds of up to 20km/h, thanks to their 48 V electrical system. Operators benefit from effortless handling in narrow aisles and enhanced safety features such as automatic speed reduction and a foot-activated parking brake.

The Linde E14-E20 electric forklifts deliver cost-effective, energy-efficient performance for warehouses and production facilities.

Characteristics

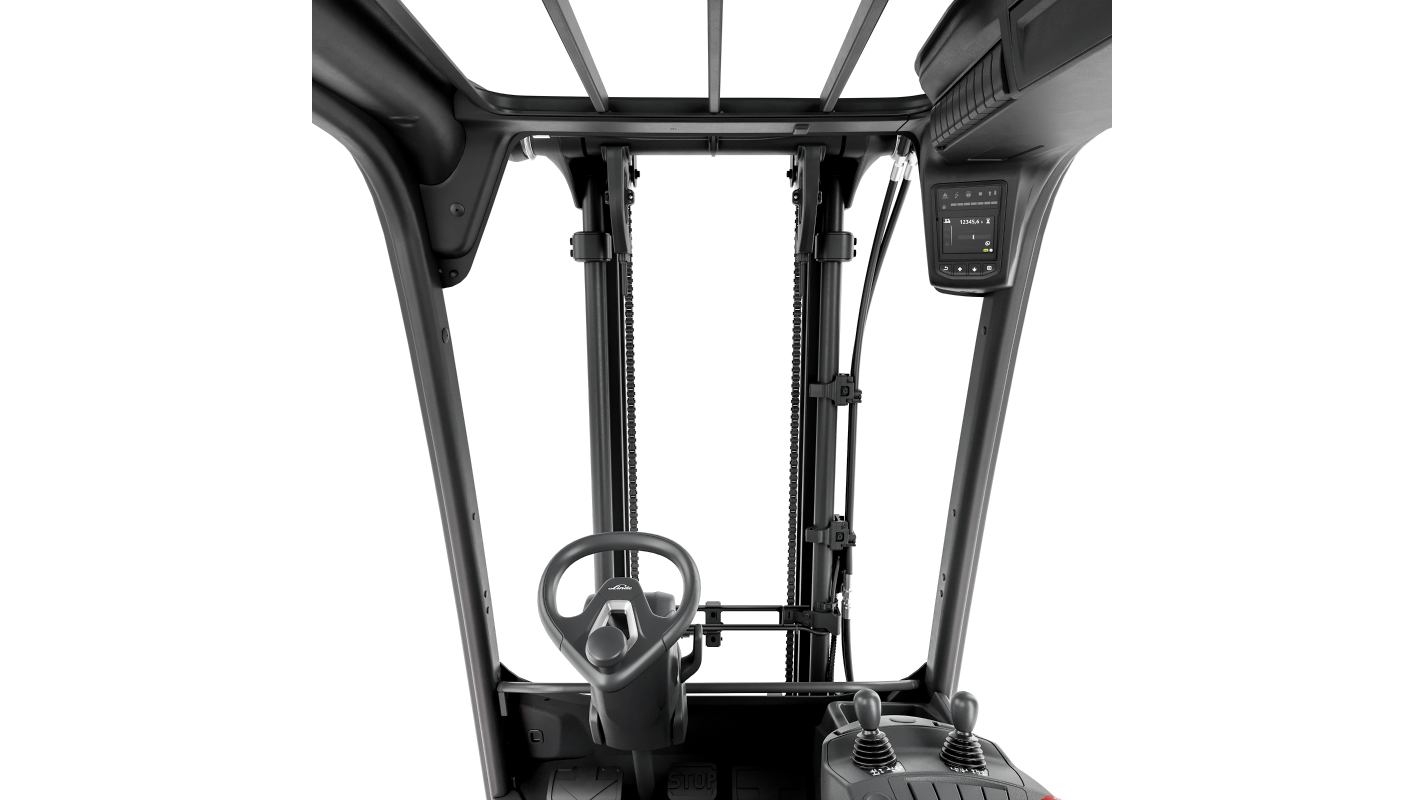

  • Excellent visibility for the driver is achieved through the slimline mast design, narrow A-pillars, and a lowered front plate.
  • The low vehicle centre of gravity ensures optimal resistance to tipping, enhancing overall safety.
  • Linde Curve Assist regulates the truck’s cornering speed based on the steering angle, reducing the risk of tipping when turning.
  • Overhead tilt cylinders provide precise load handling, even at high lift heights.
  • Automatic parking brake securely holds the truck in place on ramps and gradients.
  • Linde Load Assist increases safety when lifting at heights.

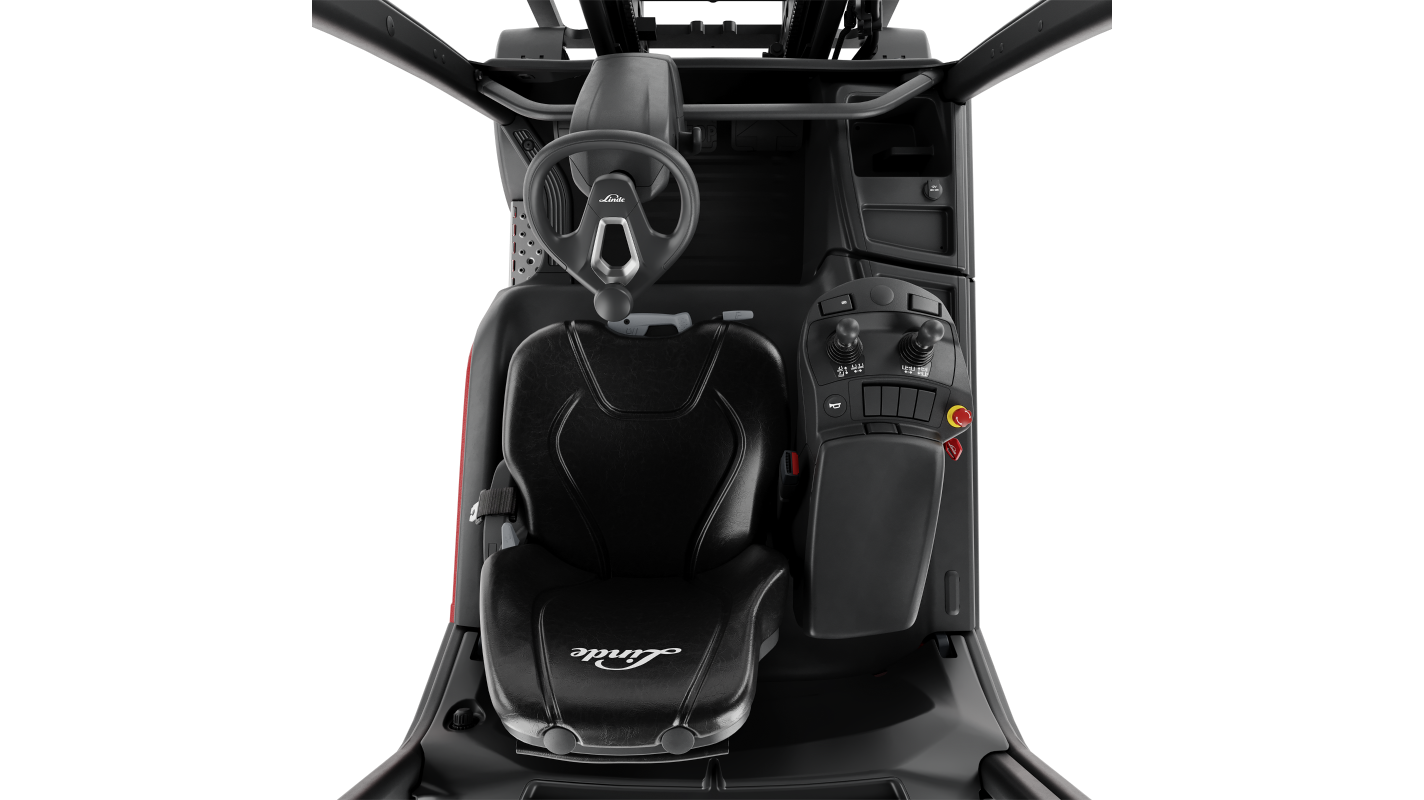

  • A spacious cabin featuring a 3.5 inch display that provides the most essential truck information.
  • The operator’s workstation is isolated from road shocks and vibrations through elastomer ring bearings, reducing operator fatigue and enhancing comfort.
  • Intuitive operation is enabled by twin pedal control and Linde Load Control.
  • Linde Steer Control offers the option of a mini wheel or joystick, replacing the traditional steering wheel.
  • Powerful 48 V technology supports continuous use in multi-shift operations.
  • Use of existing batteries on site and flexible switching between lead-acid and Li-ION batteries (plug-and-play).
  • Battery changes are made easy with side access and an open chassis design.
  • A small, compact turning radius for enhanced manoeuvrability in tight spaces.
  • Equipped with a powerful dual-drive motor system, featuring 2 x 5.25 kW drive motors and a 10 kW lift motor for efficient performance.
  • Capable of handling gradients up to 24% with ease.
  • Offers a maximum traction speed up to 20 km/h, whether laden or unladen.
  • Service intervals are determined based on continuously updated operating hours, ensuring timely maintenance.
  • Remote diagnostics enable early detection of wear and damage, minimising the risk of unexpected downtime.
  • Modular assemblies, such as the mast or driver's workstation, can be replaced quickly and easily, reducing repair-related downtime.
  • Long maintenance intervals, such as hydraulic oil and filter changes required only every 6000 hours.
  • Fully enclosed drive components are maintenance-free, ensuring reliable performance and reduced upkeep.
